| Product Name: | SE SUPER THIN CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | lathe scroll chuck, cnc lathe chuck |
||

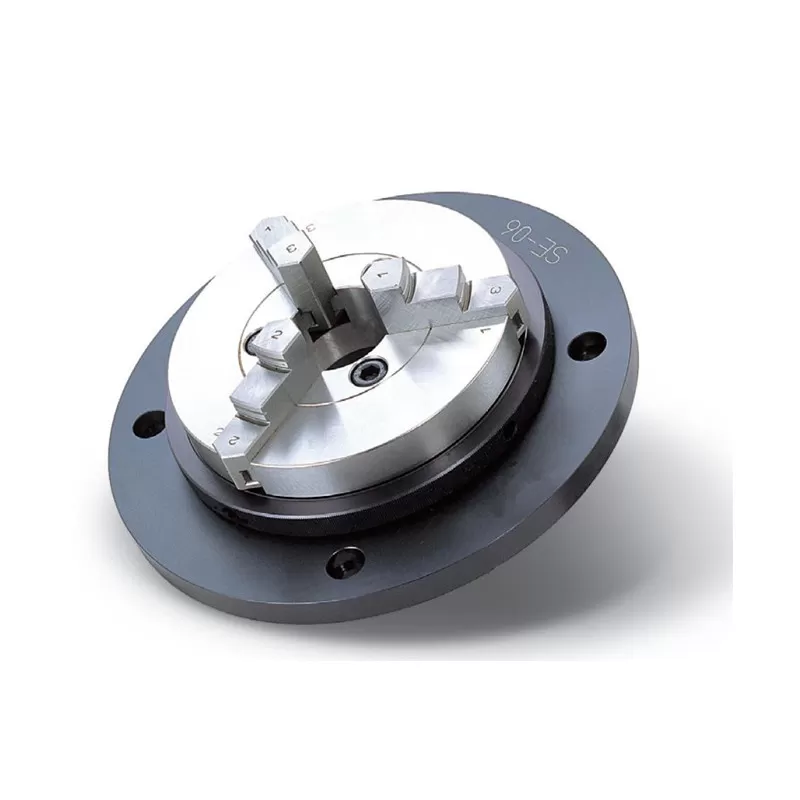

SE SUPER THIN CHUCKS
SUPER THIN CHUCKS
1.By the compactness comes fro"Light Thin,Short,Small"designung concept;the chucks are most fitting to hold work pieces for measuring.
2.Just rotate the chuck knob diectly for gripping and loosening,A handle is not necessary to be used.
3.Chuck body is made of very durable steel.
4.Jaws can be reversibly used; gripping of various sizes becomes much convenient.
5.2"chucks can even grip up to the smallent size of 0.08mm
Specification UNIT:mm
| MODEL/SPEC | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|
| SE-02 | Ø0.8-Ø63 | Ø23-Ø58 | 1.2 |
| SE-03 | Ø1-Ø81 | Ø31-Ø70 | 2.9 |
| SE-04 | Ø1-Ø100 | Ø36-Ø90 | 4.3 |
| SE-05 | Ø1.5-Ø116 | Ø43-Ø106 | 6.2 |
| SE-06 | Ø1.5-Ø160 | Ø52-Ø148 | 11.1 |

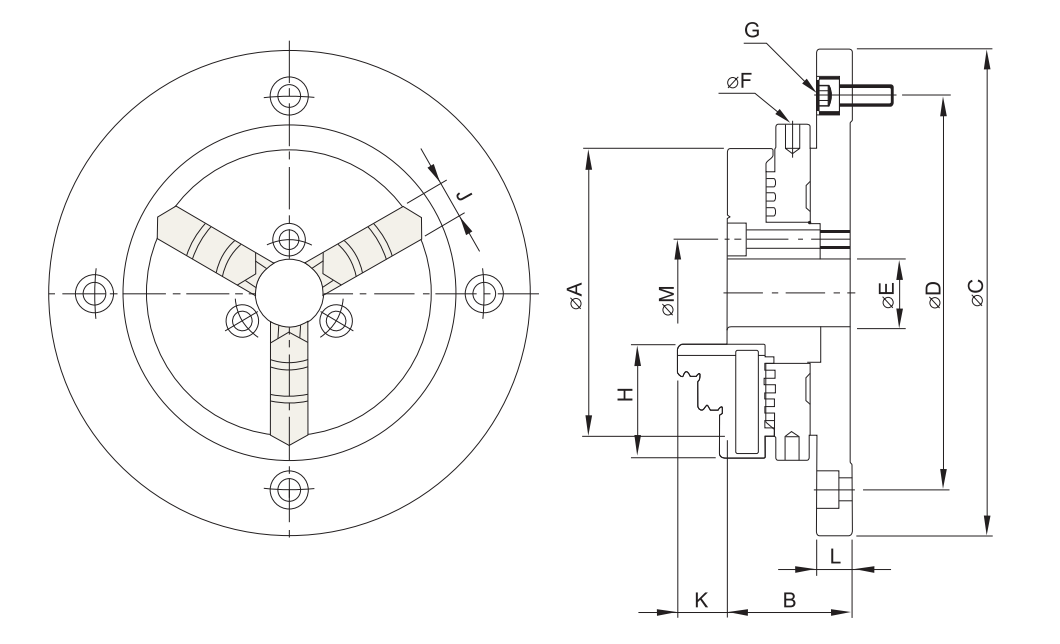

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE-02 | 63 | 28 | 118 | 100 | 16 | 4 | 4-M5x0.8P | 27 | 8 | 13 | 8 | 26 |
| SE-03 | 85 | 37 | 143 | 116 | 20 | 4 | 4-M6x1P | 35 | 11 | 15 | 10.5 | 32 |
| SE-04 | 110 | 39 | 168 | 140 | 26 | 5 | 4-M6x1P | 42 | 14 | 19 | 10 | 40 |
| SE-05 | 130 | 45 | 202 | 168 | 32 | 6 | 4-M8x1.25P | 50 | 16 | 21 | 11.5 | 49 |
| SE-06 | 160 | 52 | 248 | 208 | 50 | 8 | 4-M10x1.5P | 65 | 19 | 26 | 15 | 70 |
Subject to technology changes without prior information
Non-standard requirements can be made
