| Product Name: | NBK POWERFUL TYPE SUPER THIN CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

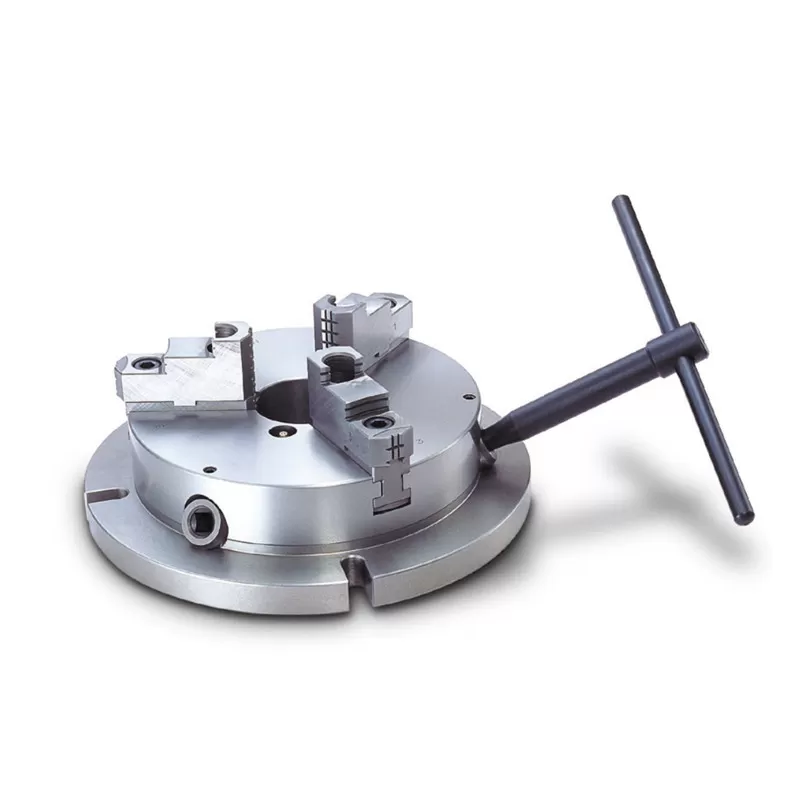

NBK POWERFUL TYPE SUPER THIN CHUCKS
SUPER THIN CHUCKS
1. The handle with an angle of 30 degrees is much convenient for operations.
2. The“super thin thickness”design of chucks increase the“allowable distance”os machining opertions.
3. Chuck flange makes loading and unloading operationgs simpler and more convenient.
4. Hard jaws and Soft jaws can be used alternatively.
Specification UNIT:mm
| MODEL/SPEC | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|
| NBK-06 | Ø8-Ø160 | Ø48-Ø150 | 10.6 |
| NBK-08 | Ø11-Ø200 | Ø62-Ø190 | 18.1 |
| NBK-10 | Ø12-Ø250 | Ø72-Ø240 | 27.9 |
| NBK-12 | Ø15-Ø300 | Ø86-Ø290 | 42.9 |

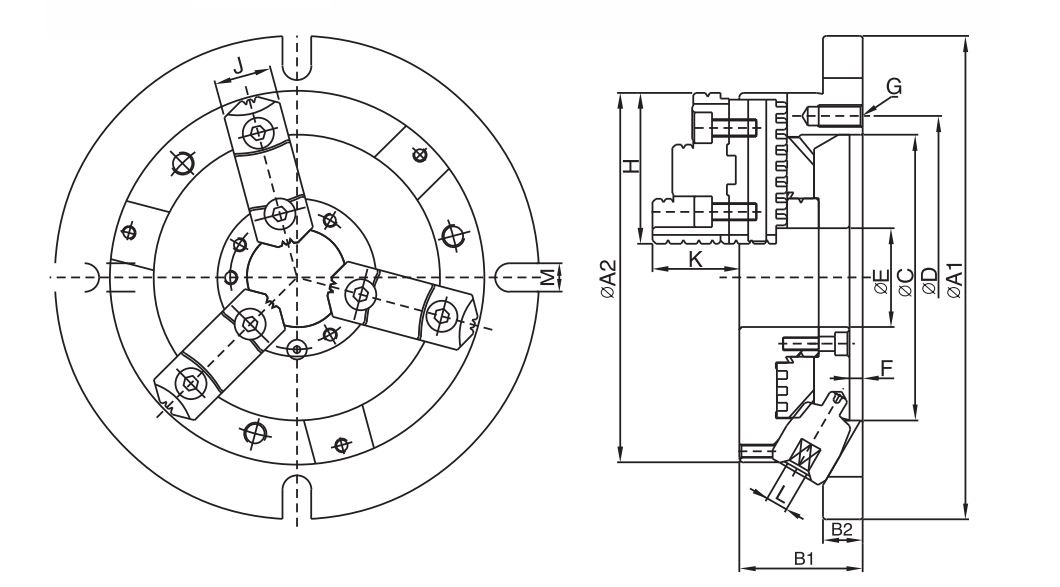

| MODEL/SPEC | A1 | A2 | B1 | B2 | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NBK-06 | 220 | 170 | 58 | 18 | 130 | 147 | 45 | 6 | 3-M10x1.5P | 68 | 26 | 40 | 10 | 13 |
| NBK-08 | 270 | 210 | 65 | 20 | 155 | 172 | 60 | 6 | 3-M10x1.5P | 82 | 28 | 43 | 11 | 13 |
| NBK-10 | 315 | 255 | 73 | 20 | 190 | 210 | 80 | 6 | 3-M12x1.75P | 93 | 32 | 52 | 12 | 16 |
| NBK-12 | 370 | 305 | 80 | 22 | 250 | 285 | 105 | 5 | 3-M12x1.75P | 118 | 40 | 59 | 14 | 18 |
Subject to technology changes without prior information
Non-standard requirements can be made
