| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 08",10",20" |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | A1 A2 3JAW A1 A2 TYPE CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, lathe scroll chuck |
||

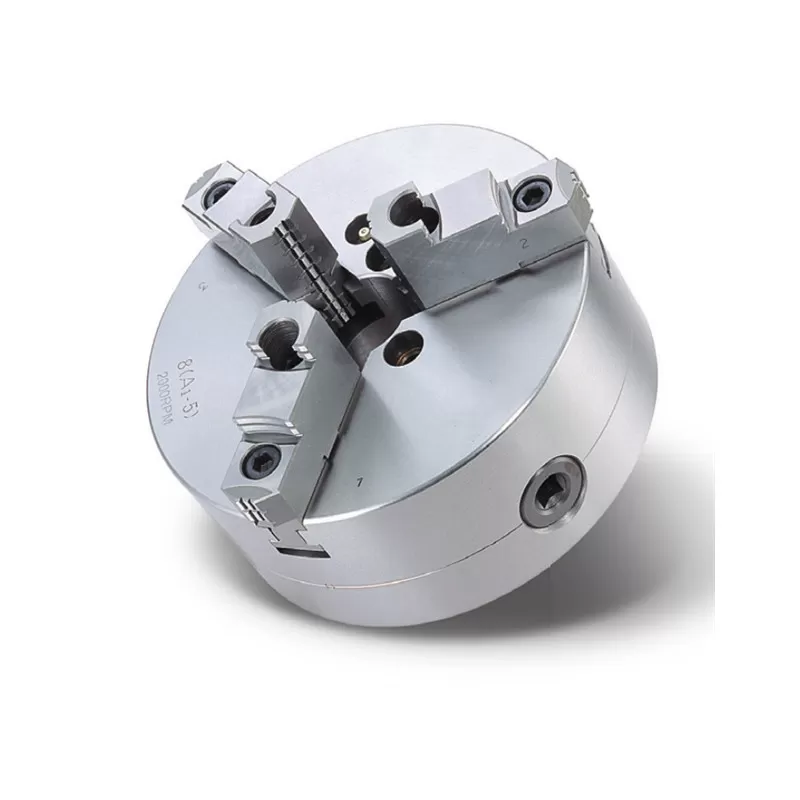

A1 A2 3JAW A1 A2 TYPE CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| A 1 5-08" | 2000 | Ø8-Ø180 | Ø62-Ø170 | 17.4 |
| A 1 6-08" | 2000 | Ø8-Ø180 | Ø62-Ø170 | 18 |
| A 1 6-10" | 1800 | Ø11-Ø240 | Ø70-Ø230 | 30.6 |
| A 2 11-20" | 1000 | Ø25-Ø480 | Ø125-Ø460 | 161.5 |

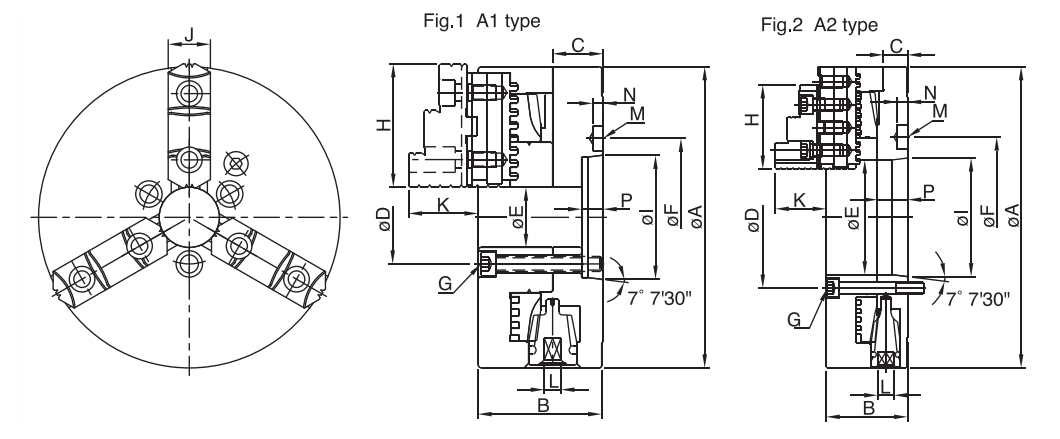

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | P | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A 1 5-08" | 200 | 83 | 33.5 | 61.9 | 40 | Ø104.8 | 3-M10x1.5P | 82 | 82.563 | 28 | 43 | 11 | Ø16.3 | 6.8 |
| A 1 6-08" | 200 | 83 | 33.5 | 82.6 | 56 | Ø133.4 | 3-M12x1.75P | 82 | 106.375 | 28 | 43 | 11 | Ø19.3 | 6.8 |
| A 1 6-10" | 255 | 91.5 | 36.5 | 82.6 | 56 | Ø133.4 | 3-M12x1.75P | 93 | 106.375 | 32 | 50 | 12 | Ø19.3 | 6.8 |
| A 2 11-20" | 500 | 135 | 40 | 235 | 190.5 | Ø235 | 6-M20x2.5P | 140 | 196.869 | 55 | 84 | 19 | Ø29.4 | 10.7 |
Subject to technology changes without prior information
Non-standard requirements can be made
