| Product Name: | AE 8-JAW AWL TYPE CHUCKS |
Material: | Cast Steel |
| Function: | Fixture/Gripping |
Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification |
Service: | ODM/OEM Is Accpetable |
| Highlight: |
lathe scroll chuck, cnc lathe chuck |

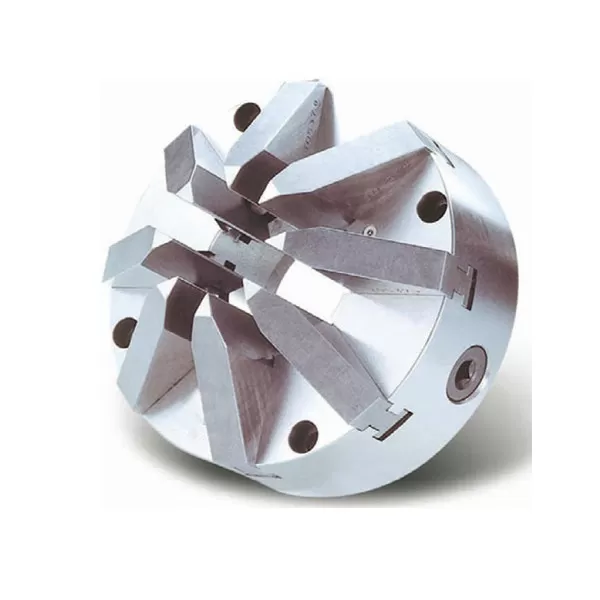

AE 8-JAW AWL TYPE CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range
mm | Weight
kg |
|---|
| AE-09 | 1000 | Ø7-Ø100 | 21 |

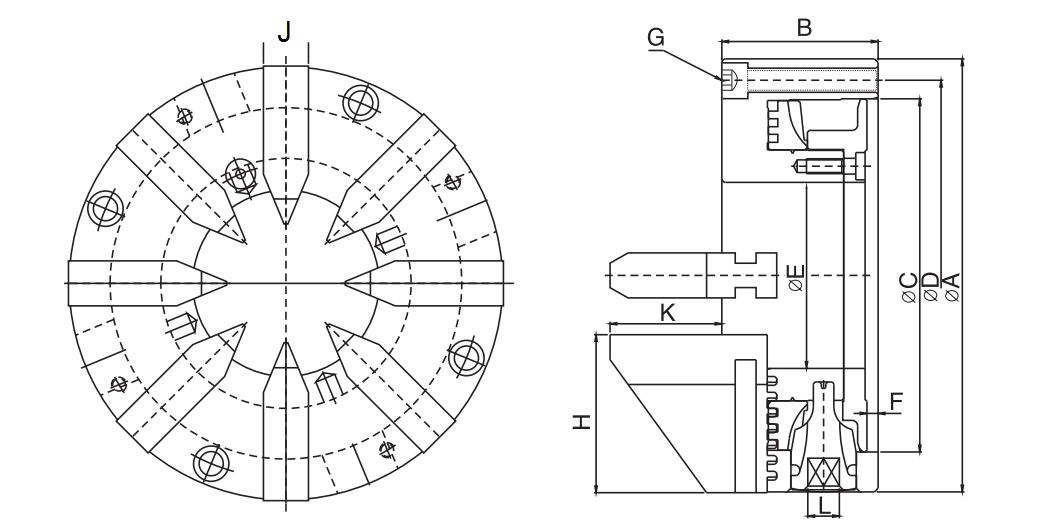

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L |
|---|
| AE-09 | 233 | 84 | 190 | 210 | 100 | 5.5 | 4-M12×1.75P | 85 | 24 | 60 | 12 |
Subject to technology changes without prior information
Non-standard requirements can be made
