| Product Name: | D1 3 JAW D1 TYPE CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Usage: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| High Light: | manual lathe chuck,cnc lathe chuck |
||

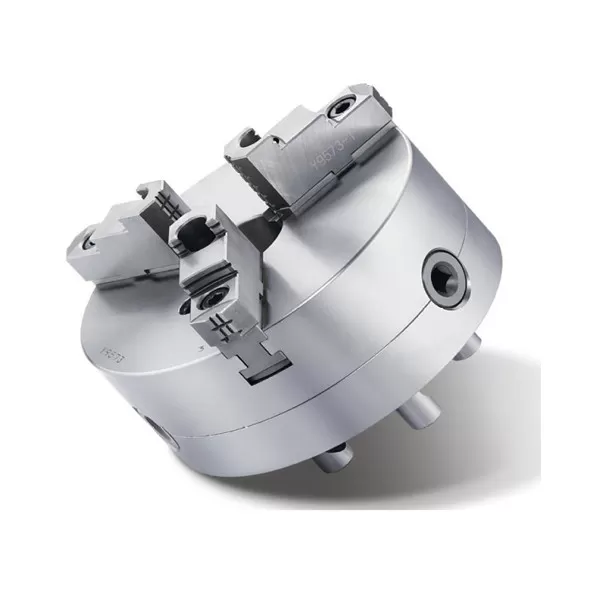

D1 3 JAW D1 TYPE CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| D15-08" | 2000 | Ø8-Ø180 | Ø62-Ø170 | 17.8 |
| D16-08" | 2000 | Ø8-Ø180 | Ø62-Ø170 | 17.3 |
| D16-10" | 1800 | Ø11-Ø240 | Ø70-Ø230 | 31.3 |
| D18-10" | 1800 | Ø11-Ø240 | Ø70-Ø230 | 30.9 |
| D18-12" | 1800 | Ø15-Ø300 | Ø90-Ø290 | 51.1 |
| D111-20" | 1000 | Ø25-Ø480 | Ø125-Ø460 | 165.5 |

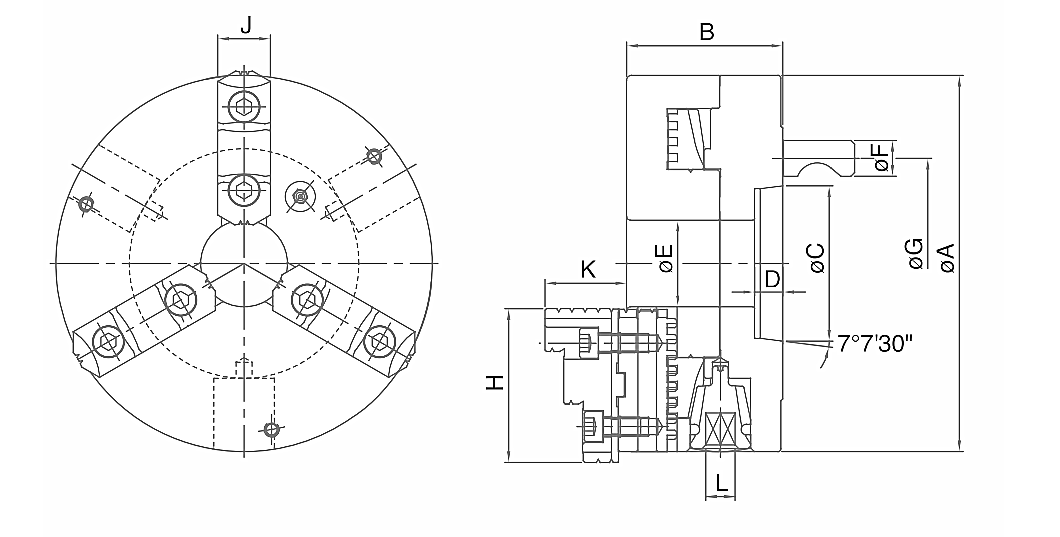

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D15-08" | 200 | 83 | 82.563 | 15 | 46 | 19 | 104.8 | 82 | 28 | 43 | 11 |
| D16-08" | 200 | 83 | 106.38 | 16 | 58 | 22.2 | 133.4 | 82 | 28 | 43 | 11 |
| D16-10" | 255 | 94 | 106.38 | 16 | 76 | 22.2 | 133.4 | 93 | 32 | 50 | 12 |
| D18-10" | 255 | 94 | 139.72 | 18 | 76 | 25.4 | 171.4 | 93 | 32 | 50 | 12 |
| D18-12" | 310 | 105 | 139.72 | 18 | 103 | 25.4 | 171.4 | 118 | 40 | 56 | 14 |
| D111-20" | 500 | 135 | 196.87 | - | 190.5 | 30.2 | 235 | 140 | 55 | 84 | 19 |
Subject to technology changes without prior information
Non-standard requirements can be made
