Product Name: | HIGH PRECISION SK32 SK42 SK52 SK65 SK80 SK100 SK120 RUBBER FLEX COLLET | Material: | Cast Steel |
---|---|---|---|
Usage: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
Size: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
High Light: | lathe collet chuck,hydraulic collet chuck |

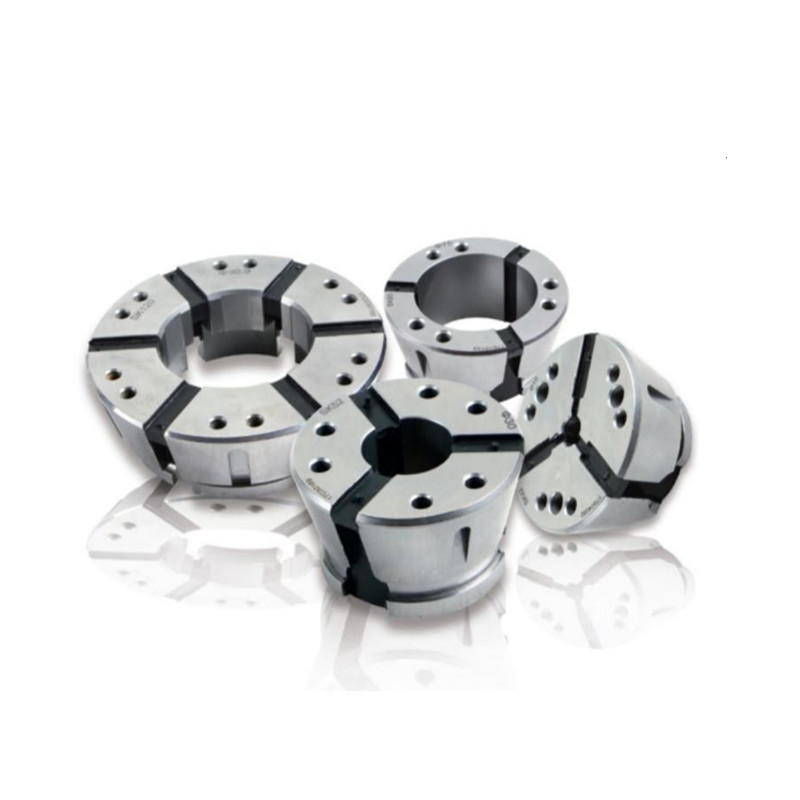

HIGH PRECISION SK32 SK42 SK52 SK65 SK80 SK100 SK120 RUBBER FLEX COLLET
SK series rubber flex collet quick grip collet
Collet Features:
1, Rubber elastic collets unique in design and operation, the rubber elastic collets can generate two to three times the gripping force of a conventional split steel collets.
2, Gripping force is uniform and parallel throughout the collets contact length and not concentrated at the nose or back as it is a common issue of the split steel collets. as the following picture shown.
Collets advantages
1, The rubber elastic collet's construction is of durable synthetic rubber compound permanently bonded to hardened steel jaws, it is unaffacted by heat, coolants and cutting chips and retains its flexibility over a long service life as compared to spring metal collets designs.

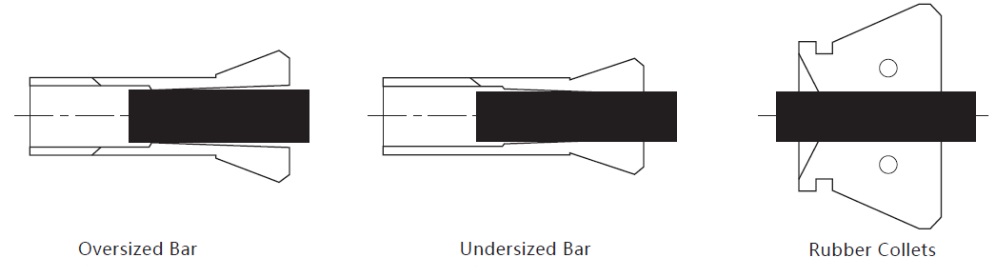

2, With a spring-type collet, unless the bore is exactly sized to the workpiece diameter there will be reduced contact, resulting in compromised accuracy and grip force.
3, With a rubber elastic collet, the segments always remain parallel to the workpiece,helping to maintain optimum accuracy and grip force.
4, Each collet segment is joined to the adjacent segments with vulcanized rubber.This ensures that the collet segments always remain parallel to the workpiece as the collet is compressed, and the gripping force is 3 times than the common spring split steel collet.
5, The one-piece construction ensures its flexibility and resists deterioration from heat, coolants and cutting chips.
6, All segments is cut from one piece collets, it has higher hardness and durability, so the gripping force and accuracy can't be matched by the spring split steel collets.
7, The rubber elastic collets can seal the workpiece and the machine spindle, so it can protect the workpiece from grinding material and cutting chips damage.
The rubber elastic collets steel hardness is HRC58-62, it is processed by cryogenic treatment.it can improve the collet's stability, the runout is less than 0.01mm, and the clamping range tolerance nominal diameter is +/- 0.5mm.

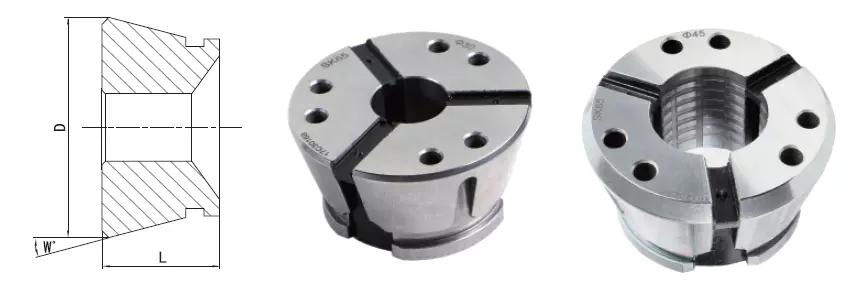

Model Spec |
D mm |
L mm |
W degree |
Clamping Dia. mm |
Through Hole type |
Radial slot Serrated |
Double Serrated |
---|---|---|---|---|---|---|---|
SK32S | 57.7 | 44 | 12 | 6-32 | smooth | ||
SK32N | 57.7 | 49 | 12 | 6-32 | serrated |
Yes, (only for 8-11 collet) |
Yes (only for 12-32 collet) |
SK42S | 79.3 | 42 | 15 | 6-42 | smooth | ||
SK42N | 79.3 | 47 | 15 | 6-42 | serrated |
Yes, (only for 8-11 collet) |
Yes (only for 12-42 collet) |
SK52S | 79.2 | 46 | 15 | 6-52 | smooth | ||
SK52N | 79.2 | 46 | 15 | 6-52 | serrated | Yes, (only for 8-11 collet) |
Yes (only for 12-52 collet) |
SK65S | 99.5 | 53 | 15 | 6-65 | smooth | ||
SK65N | 99.5 | 58 | 15 | 6-65 | serrated |
Yes, (only for 8-11 collet) |
Yes (only for 12-65 collet) |
SK80S | 114.5 | 53 | 15 | 16-80 | smooth | ||
SK80N | 114.5 | 53 | 15 | 16-80 | serrated | no | Yes |
SK100S | 144.5 | 59 | 15 | 40-100 | smooth | ||
SK100N | 144.5 | 59 | 15 | 40-100 | serrated | no | Yes |
SK120S | 180 | 61 | 15 | 70-120 | smooth | ||
SK120N | 180 | 61 | 15 | 70-120 | serrated | no | Yes |
Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.
