| Product Name: | JAS-PL PRECISION AIR STATIONARY COLLET CHUCK PULL BACK TYPE | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Available |
| Highlight: | lathe collet chuck, hydraulic collet chuck |
||

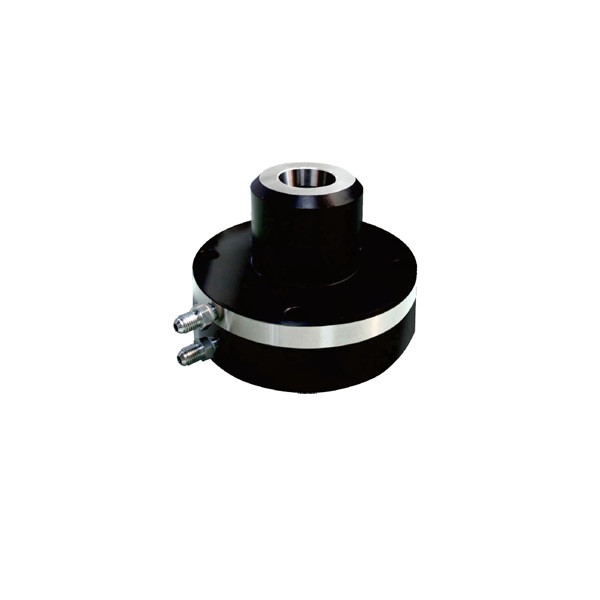

JAS-PL PRECISION AIR STATIONARY COLLET CHUCK PULL BACK TYPE
JAS-PL PRECISION AIR STATIONARY COLLET CHUCK PULL BACK TYPE
Brand:NTH
Introduction
Omatei streamline the design of chuck body, find a balance between size of chuck body and clamping force. A compact chuck body is trying to fit in more chuck in the deck of machine center. Pull Back style provide more concentricity than other stationary chuck
Steel chuck body.
Pull back to close: high precision.
Adopting 5C / 16C collets.
High resistant to chips, fluid and dust.
High accuracy. High rigidity.

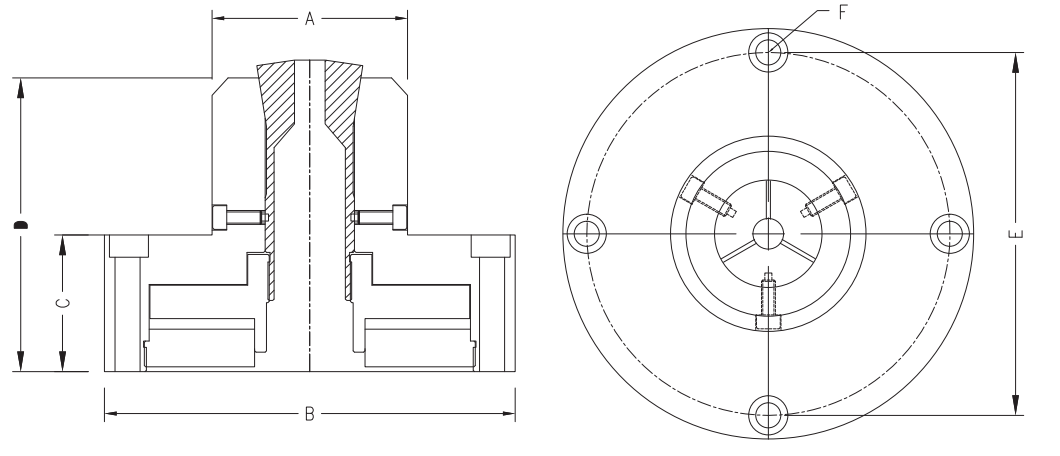

| Model | JAS-5C-PL | JAS-16C-PL |
|---|---|---|
| A | 70(2.76〞) | 90(3.54〞) |
| B | 147(5.79〞) | 178(7.00〞) |
| C | 49(1.93〞) | 49(1.93〞) |
| D | 105(4.13〞) | 126(4.96〞) |
| E | 130(5.12〞) | 158(6.22〞) |
| F(Mounting Bolts) | 4H-M8 | 4H-M8 |
| collet | ANSI 5C collet | ANSI 16C collet |
| Working Pressure | 3-8kg/cm² (43-114psi) | 3-8kg/cm² (43-114psi) |
| Max Clamping dia | 26mm(1.02〞) | 40mm(1.57〞) |
| Piston Area | 88cm² (13.7in²) | 131cm² (20.3in²) |
| Clamping Force | 3175kgf@7kg/cm² (6985lbf@100psi) | 4725kgf@7kg/cm² (10395lbf@100psi) |
| N.W | 6.5kgs(14.3lbs) | 12.5kgs(27.5lbs) |
Subject to technology changes without prior information
Non-standard requirements can be made
