| Product Name: | AIR HYDRAULIC POWER STATIONARY CHUCK | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Available |
| Highlight: | hydraulic collet chuck, cnc collet chuck |
||

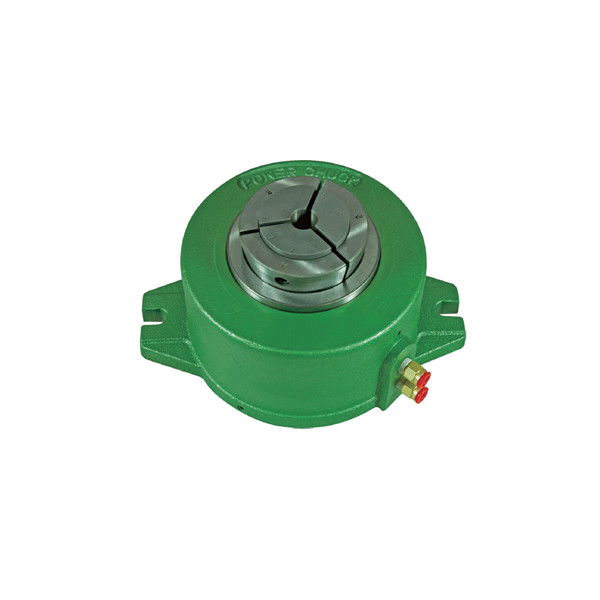

AIR HYDRAULIC POWER STATIONARY CHUCK
AIR/HYDRAULIC POWER STATIONARY CHUCK
Brand:NTH
Cast iron chuck body.
Dead length design: no axial movement.
Cost effective stationary collet chuck.
High resistant to chips, fluid and dust.
High rigidity. Long product life.
CAF series stationary chuck is the very first generation of Omatei most classic model. Old model lasting nearly 40 decades till present day. A very high CP ratio as this model being long product life, easy to maintain and works great in tapping and grill machine. Operarting by input air either hydro. Cost effective stationary collet chuck.
CAF

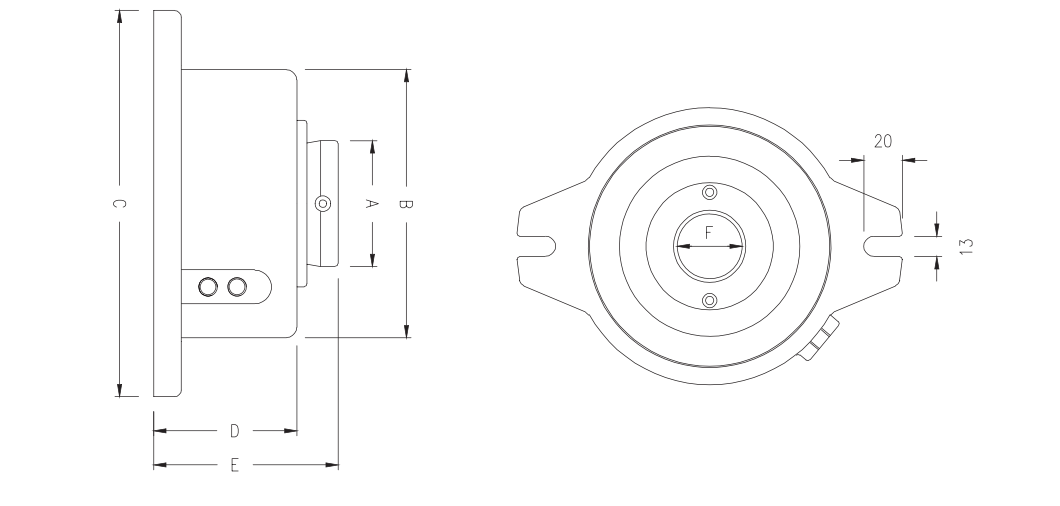

| Model | CAF-25 | CAF-40 | CAF-70 |
|---|---|---|---|
| A | 60(2.36〞) | 94(3.70〞) | 136(5.35〞) |
| B | 162(6.38〞) | 196(7.72〞) | 216(8.50〞) |
| C | 222(8.74〞) | 256(10.08〞) | 291(11.46〞) |
| D | 73(2.87〞) | 96(3.78〞) | 103(4.06〞) |
| E | 103(4.06〞) | 124(4.88〞) | 135(5.31〞) |
| F | 26(1.02〞) | 48(1.89〞) | 68(2.68〞) |
| Working collet/Jaw | YB-15 Collet | C-40 Collet | C-70 Collet |
| Power source | Air/Hydraulic | Air | Air |
| Working Pressure | 3-15kg/cm² (43-214psi) | 3-8kg/cm² (43-114psi) | 3-8kg/cm² (43-115psi) |
Max Clamping dia. Thru/no thru | 26mm/28mm (1.02〞/1.10〞) | 45mm/50mm (1.77〞/1.97〞) | 68mm/90mm (2.68〞/3.54〞) |
| Clamping Torque | 6kgf-m(43lbf-ft) | 6kgf-m(43lbf-ft) | 7kgf-m(50lbf-ft) |
| N.W | 9.0kgs(19.8lbs) | 14.0kgs(30.8lbs) | 23.0kgs(50.6lbs) |
Subject to technology changes without prior information
Non-standard requirements can be made
