| Product Name: | JAS JHS AIR HYDRAULIC POWER STATIONARY CHUCK PUSH FORWARD TYPE | Material: | JAS-15,JAS-25,JAS-5C,JAS-40,JHS-40,JHS-70, |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Available |
| Highlight: | lathe collet chuck, hydraulic collet chuck |
||

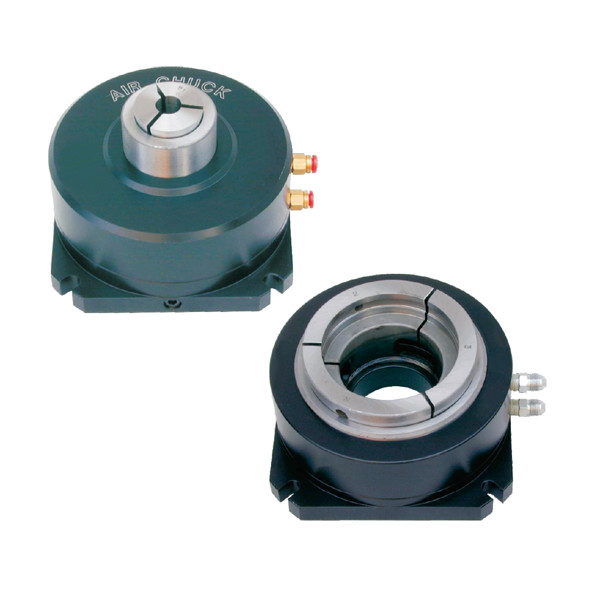

JAS JHS AIR HYDRAULIC POWER STATIONARY CHUCK PUSH FORWARD TYPE
JAS JHS AIR HYDRAULIC POWER STATIONARY CHUCK PUSH FORWARD TYPE
Brand:NTH
Introduction

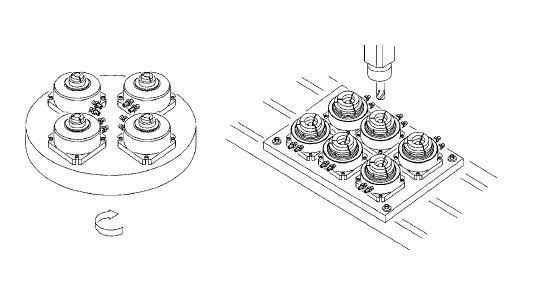

Omatei streamline the design of chuck body, find a balance between size of chuck body and clamping force. A compact chuck body is trying to fit in more chuck in the deck of machine center. Pull Back style provide more concentricity than other stationary chuck.
Cost effective stationar y collet chuck.
Dead length design: no axial movement.
High accuracy. High rigidity. Long product life.
High resistant to cutting chips, fluid or dust.
Chuck force-opening design ensures no
workpieces jamming.

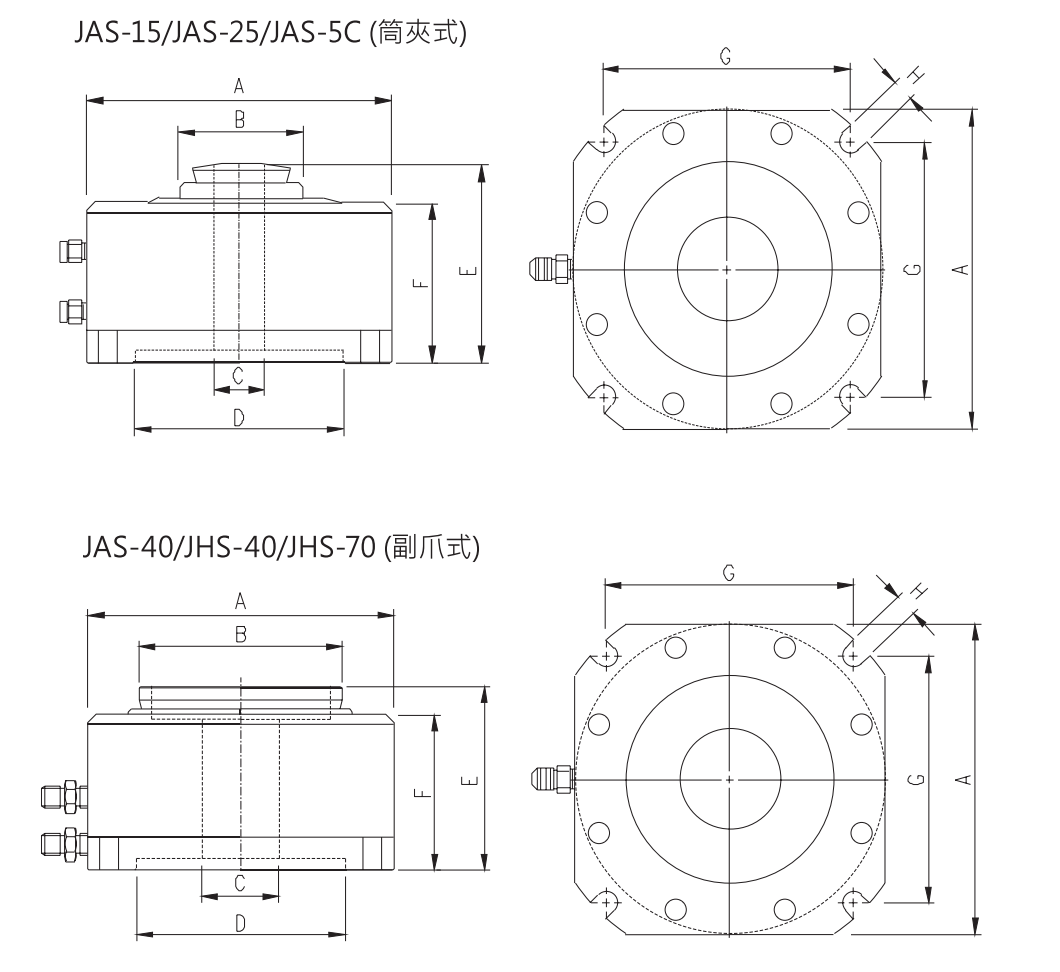

JAS/JHA
| Model | JAS-15 | JAS-25 | JAS-5C | JAS-40 | JHS-40 | JHS-70 |
|---|---|---|---|---|---|---|
| A | 118(4.65〞) | 144(5.67〞) | 144(5.67〞) | 168(6.61〞) | 144(5.67〞) | 190(7.48〞) |
| B | 40(1.57〞) | 55(2.17〞) | 55(2.17〞) | 95(3.74〞) | 95(3.74〞) | 136(5.35〞) |
| C | 14(0.55〞) | 26(1.02〞) | 26(1.02〞) | 38(1.50〞) | 38(1.50〞) | 68(2.68〞) |
| D | 90(3.54〞) | 100(3.94〞) | 100(3.94〞) | 100(3.94〞) | 100(3.94〞) | 155(6.10〞) |
| E | 77(3.03〞) | 108(4.25〞) | 93(3.66〞) | 97(3.82〞) | 94(3.70〞) | 95(3.73〞) |
| F | 64(2.52〞) | 74(2.91〞) | 74(2.91〞) | 77(3.03〞) | 73(2.87〞) | 74(2.91〞) |
| G | 97(3.82〞) | 118(4.65〞) | 118(4.65〞) | 136.5(5.37〞) | 118(4.65〞) | 153.5(6.04〞) |
| H | 9(0.35〞) | 9(0.35〞) | 9(0.35〞) | 11(0.43〞) | 9(0.35〞) | 11(0.43〞) |
| Working collet/Jaw | YB-15 Collet | YB-25 Collet | 5C Collet | C-40 Jaw | C-40 Jaw | C-70 Jaw |
| Power source | Air/Hydraulic | Air/Hydraulic | Air/Hydraulic | Air | Hydraulic | Hydraulic |
| Working Pressure | 3-15kg/cm² (43-214psi) | 3-15kg/cm² (43-214psi) | 3-15kg/cm² (43-214psi) | 3-8kg/cm² (43-114psi) | 3-20kg/cm² (43-286psi) | 3-20kg/cm² (43-286psi) |
Max clamping dia. (Through hole) | 14mm (0.56〞) | 26mm (1.02〞) | 26mm (1.02〞) | 38mm (1.50〞) | 38mm (1.50〞) | 68mm (2.68〞) |
| Max clamping dia.(Non thru) | 18mm (0.71〞) | 28mm (1.10〞) | 28mm (1.10〞) | 50mm (1.97〞) | 50mm (1.97〞) | 90mm (3.54〞) |
| Piston Area | 79cm² (12.2in²) | 112cm² (17.4in²) | 112cm² (17.4in²) | 240cm² (37.2in²) | 86cm² (13.3in²) | 110cm² (17.1in²) |
| Clamping Force | 2850kgf @7kg/cm² (6260lbf @100psi) | 3890kgf @7kg/cm² (8550lbf @100psi) | 3890kgf @7kg/cm² (8550lbf @100psi) | 5090kgf @7kg/cm² (11210lbf @100psi) | 5250kgf @20kg/cm² (11550lbf @286psi) | 6780kgf @20kg/cm² (14920lbf @286psi) |
| N.W | 5.0kgs (11.0lbs) | 9.0kgs (19.8lbs) | 9.0kgs (19.8lbs) | 12.5kgs (18.7lbs) | 8.5kgs (18.7lbs) | 13.5kgs (29.7lbs) |
Subject to technology changes without prior information
Non-standard requirements can be made
