| Product Name: | 5C/16C CPD DEAD-LENGTH COLLET CHUCK FOR 5C/16C COLLET | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Available |
| Highlight: | hydraulic collet chuck, cnc collet chuck |
||

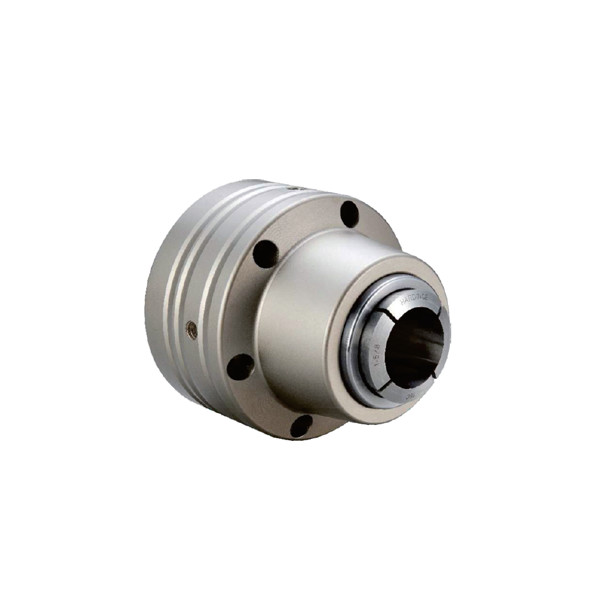

5C/16C CPD DEAD-LENGTH COLLET CHUCK FOR 5C/16C COLLET
5C/16C CPD DEAD-LENGTH COLLET CHUCK FOR 5C/16C COLLET
Brand:NTH
Adops 5C / 16C collets.
5C Collet: max. capacity 26mm.
16C Collet: max. capacity 40mm.

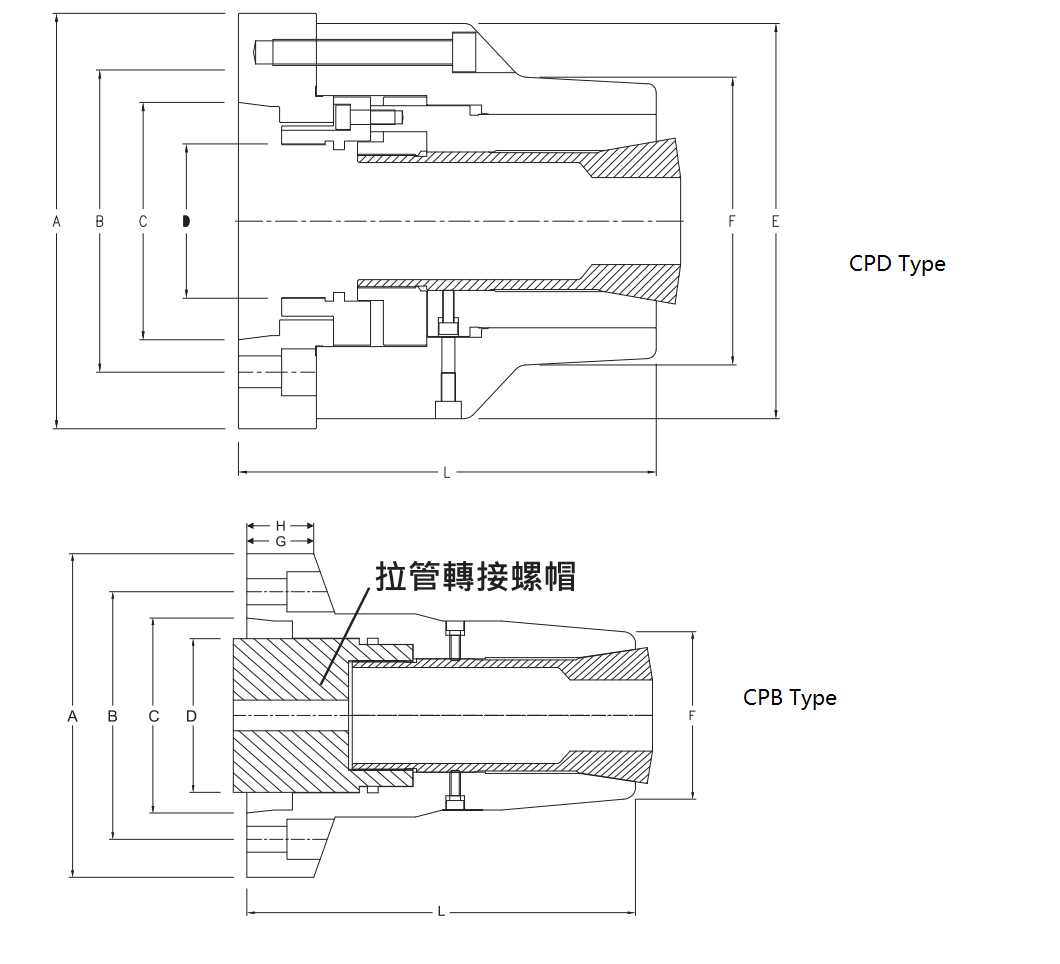

| Model | CPD-5CA5 | CPD-5CA6 | CPD-16CA5 | CPD-16CA6 |
|---|---|---|---|---|
| Spindle nose | A2-5 | A2-6 | A2-5 | A2-6 |
| A | 138(5.43〞) | 158(6.22〞) | 138(5.43〞) | 158(6.22〞) |
| B(P.C.D) | 104.8(4.13〞) | 133.4(5.25〞) | 104.8(4.13〞) | 133.4(5.25〞) |
| C | 82.6(3.25〞) | 106.4(4.19〞) | 82.6(3.25〞) | 106.4(4.19〞) |
| D Draw tube thread | M73*P1.5 | M73*P1.5 | M91*P1.5 | M91*P1.5 |
| E | 100(3.94〞) | 100(3.94〞) | 138(5.43〞) | 138(5.43〞) |
| F | 78(3.07〞) | 78(3.07〞) | 90(3.54〞) | 90(3.54〞) |
| L | 123(4.84〞) | 125(4.92〞) | 145(5.71〞) | 148(5.83〞) |
| Screw | 6H-M10 | 6H-M12 | 6H-M10 | 6H-M12 |
| Collet | 5C (26mm) | 5C (26mm) | 16C (40mm) | 16C (40mm) |
| Max. Pull force | 1800kgf (3900lbf) | 1800kgf (3900lbf) | 2300kgf (5060lbf) | 2300kgf (5060lbf) |
| Max RPM | 6000 | 6000 | 5000 | 5000 |
| N.W | 8.0kgs (17.6lbs) | 9.0kgs (19.8lbs) | 10.0kgs (22lbs) | 12.0kgs (26.4lbs) |
NTH offers a blank drawnut when shipping the chuck. Customer s could thread the drawnut according to the drawtube of the machine.
Subject to technology changes without prior information
Non-standard requirements can be made
