| Product Name: | HIGH QUALITY PULL BACK COLLET CHUCK | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision | |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | lathe collet chuck, cnc collet chuck |
||

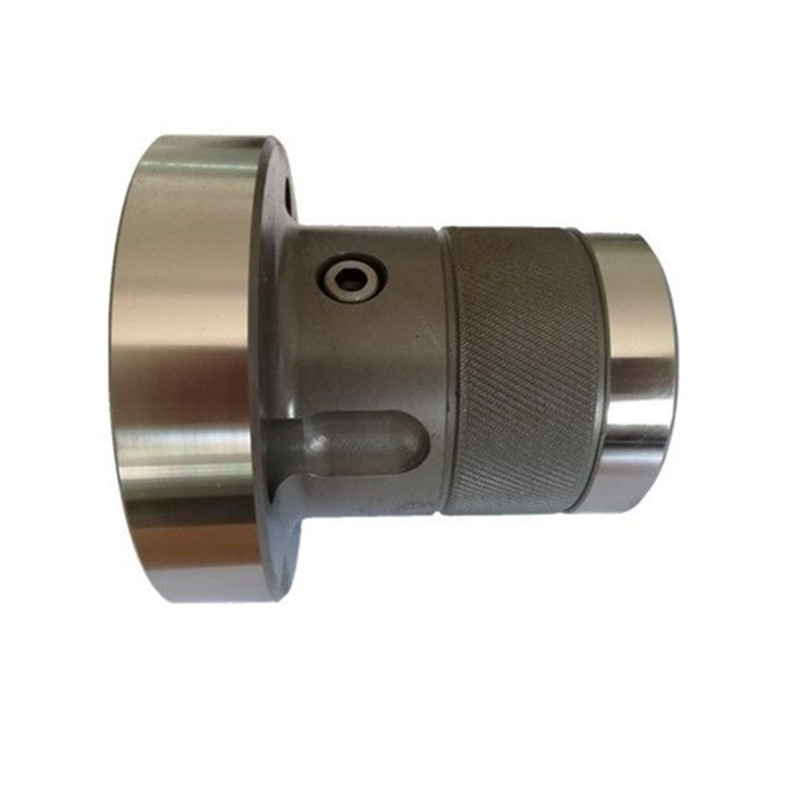

HIGH QUALITY PULL BACK COLLET CHUCK
Brand:NTH
Pull back collet chuck
Its applicable for various CNC machines.
Easy installation, the installation size is compatible with the related hydraulic chucks.
The bar workpiece can be input through the collet chuck hole.
The collet is optional for different size and shape workpiece.
Size unit: mm

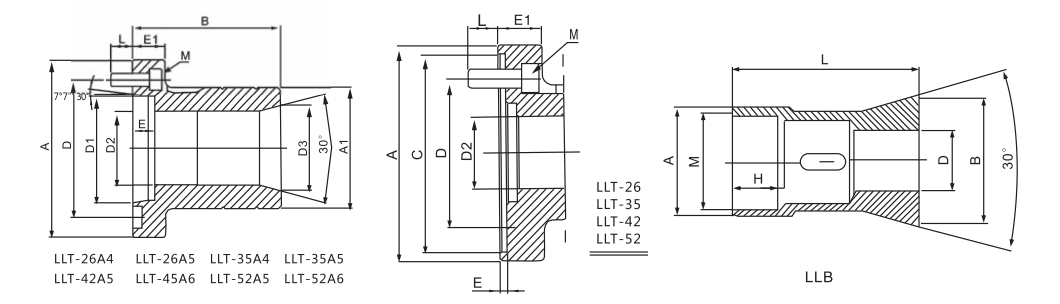

| Model | A | A1 | B | C(H6) | D | D1 | D2 | D3 | E | E1 | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LLT-26 | 120 | 120 | 110 | 110 | 82.6 | 40 | 48 | 4 | 25 | 17 | 3-M10*25 | |
| LLT-35 | 120 | 83 | 110 | 110 | 82.6 | 49 | 58 | 4 | 25 | 18 | 3-M10*25 | |
| LLT-42 | 155 | 90 | 115 | 140 | 104.8 | 56 | 65 | 5 | 25 | 19 | 4-M10*25 | |
| LLT-52 | 155 | 106 | 125 | 140 | 104.8 | 65 | 73 | 5 | 25 | 20 | 4*M10*25 | |
| LLT-26A4 | 112 | 73 | 110 | 82.6 | 63.51 | 40 | 48 | 17 | 25 | 21 | 3-M10*30 | |
| LLT-26A5 | 135 | 73 | 110 | 82.6 | 82.56 | 40 | 48 | 17 | 25 | 22 | 3-M10*30 | |
| LLT-35A4 | 112 | 83 | 110 | 82.6 | 63.51 | 49 | 58 | 17 | 25 | 23 | 3-M10*30 | |
| LLT-35A5 | 135 | 83 | 110 | 82.6 | 82.56 | 49 | 58 | 17 | 25 | 24 | 3-M10*30 | |
| LLT-42A5 | 135 | 90 | 115 | 104.8 | 82.56 | 56 | 65 | 17 | 25 | 25 | 4-M10*30 | |
| LLT-42A6 | 165 | 90 | 115 | 133.4 | 106.38 | 56 | 65 | 17 | 30 | 26 | 4-M12*30 | |
| LLT-52A5 | 135 | 106 | 125 | 104.8 | 82.56 | 65 | 73 | 17 | 25 | 27 | 4-M10*30 | |
| LLT-52A6 | 165 | 106 | 125 | 133.4 | 106.38 | 65 | 73 | 17 | 30 | 28 | 4-M12*30 |
| Model | A(g6) | B | Round D max | Hex. D max | Square D max | H | L | M |
|---|---|---|---|---|---|---|---|---|
| LLB-26 | 40 | 49 | 26 | 22 | 18 | 27 | 95 | M33*1.5 |
| LLB-35 | 49 | 59 | 35 | 32 | 26 | 27 | 95 | M42*1.5 |
| LLB-42 | 56 | 66 | 42 | 42 | 29 | 27 | 100 | M50*2 |
| LLB-52 | 65 | 74 | 52 | 52 | 36 | 27 | 100 | M55*2 |
| Spec Mode | Clamp Bar mm | Clamp Hex mm | Clamp Square mm | Max.Pull force kgf | Max Gripping force kgf | Max RPM | I kg.m² | Max.pressure Mpa | Weight kg | Matching Stell Collet | Matching cylinder |
| LLT-26 | 3-26 | 4-22 | 4-18 | 1840 | 3980 | 7000 | 0.037 | 2.6 | 4.2 | LLB-26 | H-0928 |
| LLT-35 | 3-35 | 6-32 | 6-26 | 2040 | 4480 | 6000 | 0.057 | 2.4 | 6.5 | LLB-35 | H-1246 |
| LLT-42 | 3-42 | 6-36 | 6-29 | 2550 | 5600 | 6000 | 0.061 | 2.9 | 6.9 | LLB-42 | H-1246 |
| LLT-42 | 5-52 | 8-45 | 7-36 | 2860 | 6220 | 5500 | 0.093 | 2.4 | 14.3 | LLB-52 | H-1552 |
Subject to technology changes without prior information
Non-standard requirements can be made
