| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TSC96680-3"，TSC96680-4"，TSC96680-6"TSC96680-8"etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TSC-96680 CHANGEABLE BULL NOSE DEAD CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | lathe tailstock live center, wood lathe tailstock live center |
||

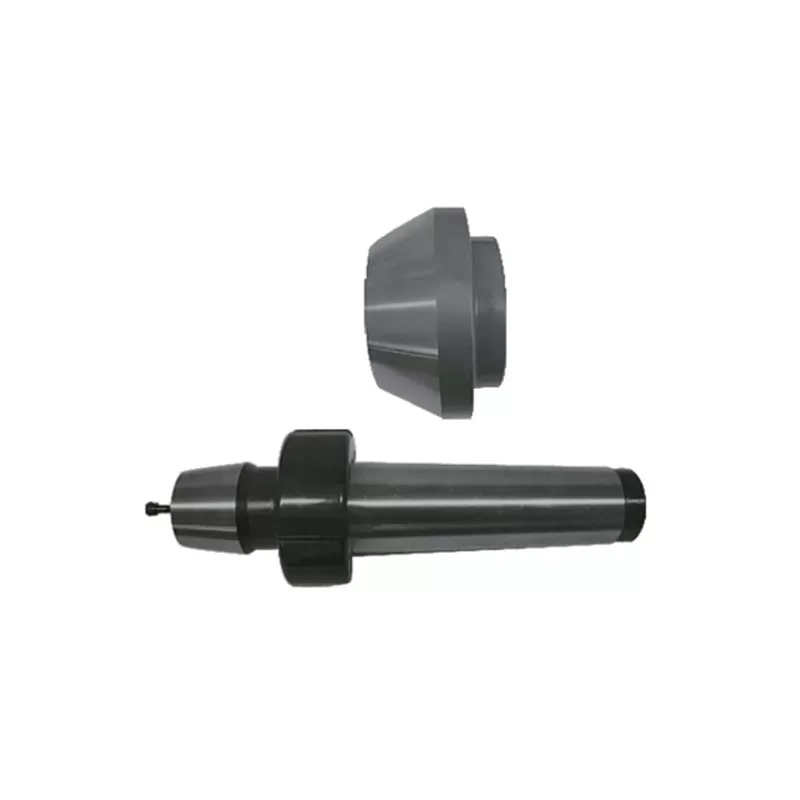

TSC-96680 CHANGEABLE BULL NOSE DEAD CENTER
Type: Bull nose centers,Interchangeable
Application: CNC lathe and other machine tool.
Working Usage: Applicable for big size inner diameter workpiece turning process.

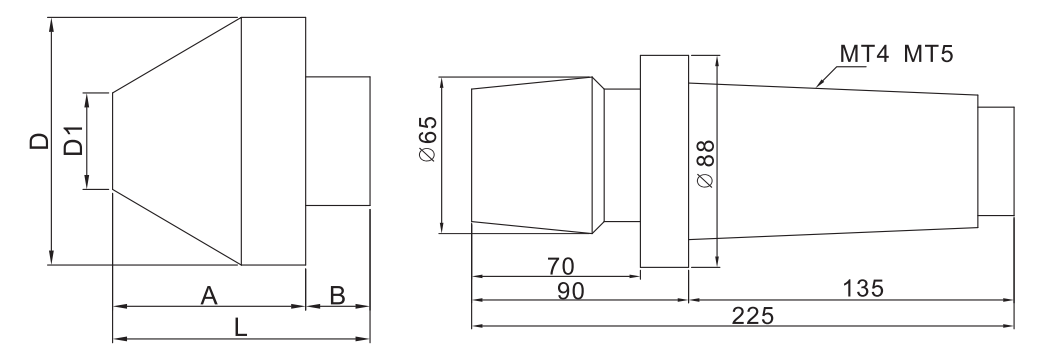

Specification UNIT:mm TIR:<0.005mm
| Model/Spec | A | B | C | D1 | L |
| TSC96680-3" | 60 | 20 | 77 | 30 | 80 |
| TSC96680-4" | 60 | 20 | 107 | 60 | 80 |
| TSC96680-5" | 60 | 20 | 127 | 80 | 80 |
| TSC96680-6" | 60 | 20 | 157 | 110 | 80 |
| TSC96680-8" | 60 | 20 | 207 | 160 | 80 |
| TSC96680-10" | 60 | 20 | 257 | 210 | 80 |
| TSC96680-12" | 60 | 20 | 306 | 259 | 80 |
Customized order can be accepted.
Subject to technical changes.
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
