F67-B FIXED POINT FACE DIVER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: F67-1836-4,F67-2240-4,F67-2745-4
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: F67-B FIXED POINT FACE DIVER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.005mm
High Light:

lathe tailstock live center

,

wood lathe tailstock live center

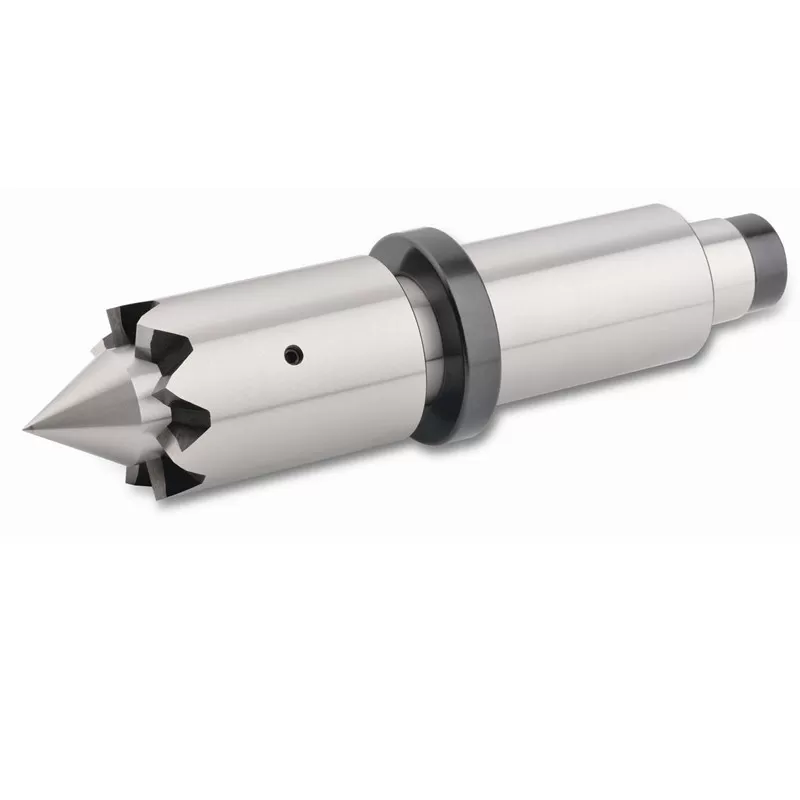

F67-B FIXED POINT FACE DIVER

Type: Face driving center,Dead driving head type

Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool.

Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost saving.
Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.

Accessories: MT4 sleeve

F67-B FIXED POINT FACE DIVER 0

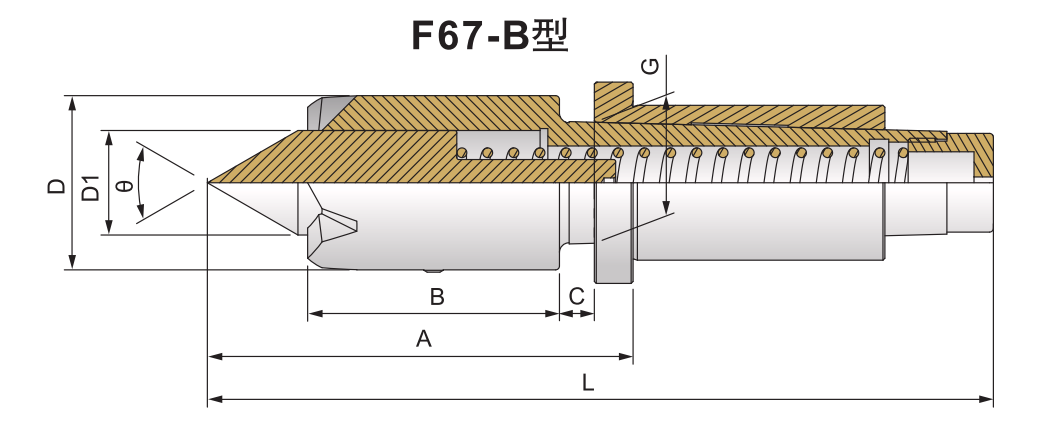

Specification UNIT:mm TIR:<0.005mm

Model/Spec A B C D D1 G L Ø
F67-1836-4 102 65 10 36 18 31.267(MT4) 195 60°
F67-2240-4 107 67 10 40 22 31.267(MT4) 200 60°
F67-2745-4 115 70 10 45 27 31.267(MT4) 207 60°

Customized order can be accepted.

Subject to technical changes.
