| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | F67-0408-4,F67-0510-4,F67-0612-4 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | F67-A FIXED POINT FACE DIVER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | live center tailstock, wood lathe tailstock live center |
||

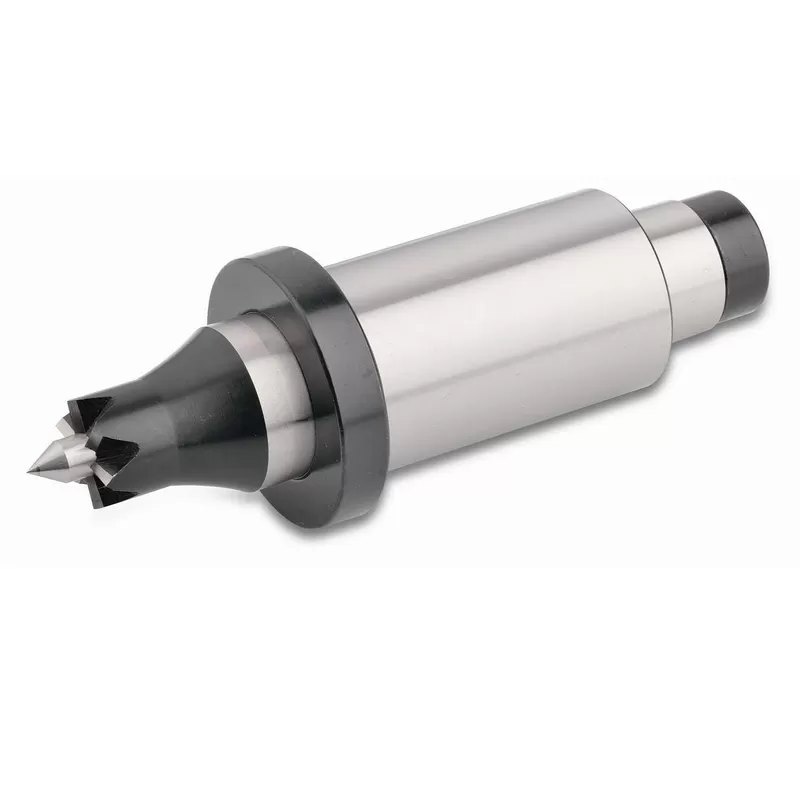

F67-A FIXED POINT FACE DIVER
Type: Face driving center,Dead driving head type
Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool.
Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost saving.
Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.
Accessories: MT4 sleeve

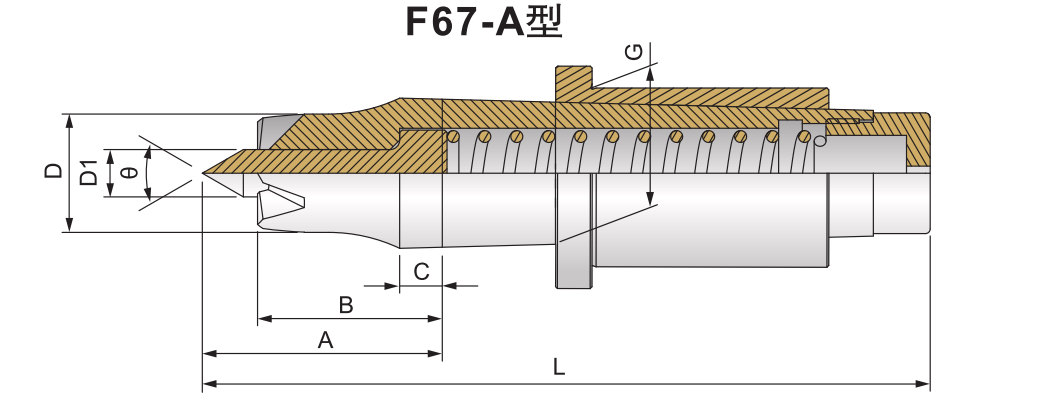

Specification UNIT:mm TIR:<0.005mm
| Model/Spec | A | B | C | D | D1 | G | L | Ø |
| F67-0408-4 | 45 | 39 | 9 | 8 | 4 | 31.267(MT4) | 147 | 60° |
| F67-0510-4 | 46 | 39 | 9 | 10 | 5 | 31.267(MT4) | 148 | 60° |
| F67-0612-4 | 47 | 39 | 9 | 12 | 6 | 31.267(MT4) | 149 | 60° |
| F67-0616-4 | 47 | 39 | 9 | 16 | 6 | 31.267(MT4) | 149 | 60° |
| F67-0820-4 | 49 | 39 | 9 | 20 | 8 | 31.267(MT4) | 151 | 60° |
| F67-0832-4 | 49 | 39 | 9 | 32 | 8 | 31.267(MT4) | 151 | 60° |
| F67-1025-4 | 51 | 39 | 9 | 25 | 10 | 31.267(MT4) | 153 | 60° |
| F67-1228-4 | 53 | 39 | 9 | 28 | 12 | 31.267(MT4) | 155 | 60° |
| F67-1432-4 | 54 | 39 | 9 | 32 | 14 | 31.267(MT4) | 156 | 60° |
Customized order can be accepted.
Subject to technical changes.
