| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SC-67-B-0408,SC-67-B-0510,SC-67-B-0612 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC-67-B CHANGEABLE CENTER CONE FACE DIVER | Material: | Alloy Steel |
|---|---|---|---|
| Usage: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Size: | Refer To The Specification | TIR: | Less Than 0.005mm |
| Highlight: | lathe tailstock live center,wood lathe tailstock live center |
||

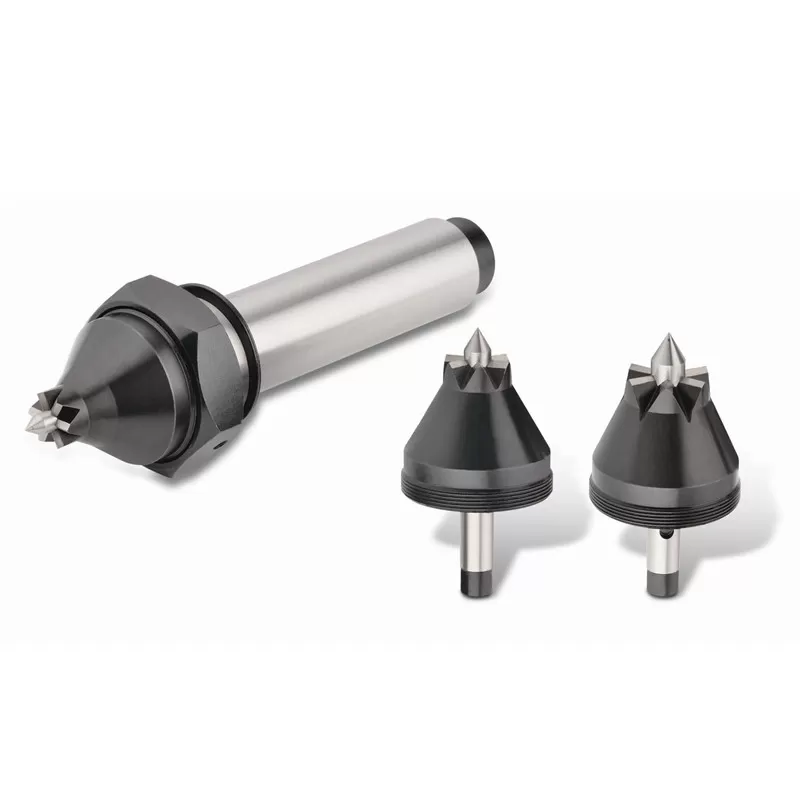

SC-67-B CHANGEABLE CENTER CONE FACE DRIVER
Type: Face driving center,Interchangeable driving head type
Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool.
Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost saving.
Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.
Accessories:Standard accessories
SC-67-0616
SC-67-0820
SC-67-1025

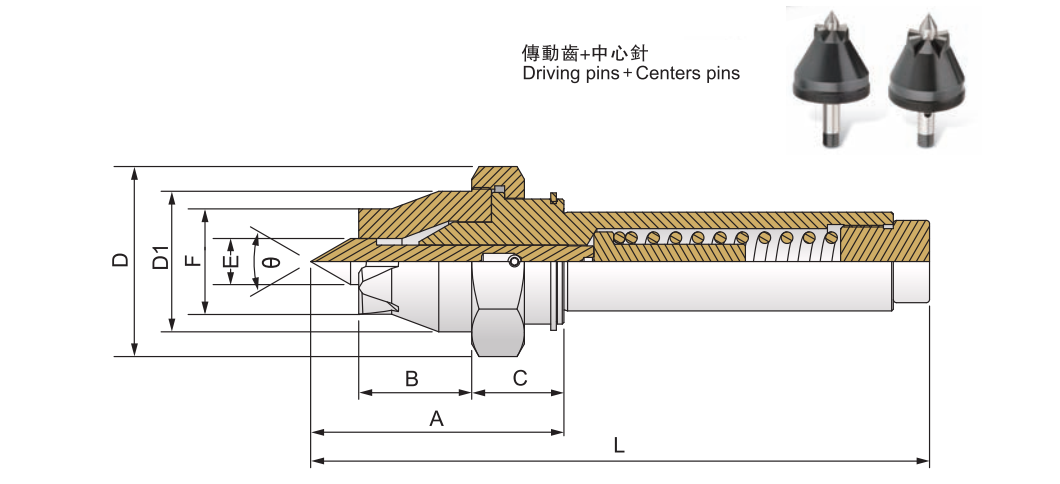

Specification UNIT:mm TIR:<0.005mm
| Model/Spec | A | B | C | D | D1 | E | F | L |
| SC-67-B-0408 | 68.3 | 34.3 | 28 | 57 | 42.8 | 4 | 8 | 179.3 |
| SC-67-B-0510 | 68.3 | 34.3 | 28 | 57 | 42.8 | 5 | 10 | 179.3 |
| SC-67-B-0612 | 70.3 | 34.3 | 28 | 57 | 42.8 | 6 | 12 | 181.3 |
| SC-67-B-0616 | 70.3 | 34.3 | 28 | 57 | 42.8 | 6 | 16 | 181.3 |
| SC-67-B-0820 | 70.3 | 34.3 | 28 | 57 | 42.8 | 8 | 20 | 181.3 |
| SC-67-B-1025 | 73.9 | 34.3 | 28 | 57 | 42.8 | 10 | 25 | 184.9 |
| SC-67-B-1225 | 76.9 | 34.3 | 28 | 57 | 42.8 | 12 | 25 | 187.9 |
| SC-67-B-1432 | 76.9 | 34.3 | 28 | 57 | 42.8 | 14 | 32 | 187.9 |
Customized order can be accepted.
Subject to technical changes.
Omatei Promise on Quality
1. 100% inspected and 100% qualified
2. In case of quality defects before use, buyer should notify Omatei within a week after
receiving goods, Omatei is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety.
3. If buyer need changing before use, buyer should notify Omatei within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety.
Packing and Deliverly
Packing Details : Our packing is firm and safe and suitable for air or sea shipping way.
Lead time: 1 day after received payment if in stock, otherwise, the lead time is 30 days.
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/ email / phone, in case of any delays.
Your inquiry related to our products or price will be replied in 24hrs.
Production Catalogue Download:
Manual and Technical instruction for Centers
