| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SC-66-A-3A,SC-66-A-3B,SC-66-A-3C etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC-66-A CHANGEABLE SELF COMPENSATING FACE DRIVER | Material: | Alloy Steel |
|---|---|---|---|
| Usage: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Size: | Refer To The Specification | TIR: | Less Than 0.005mm |
| High Light: | lathe tailstock live center,live center tailstock |
||

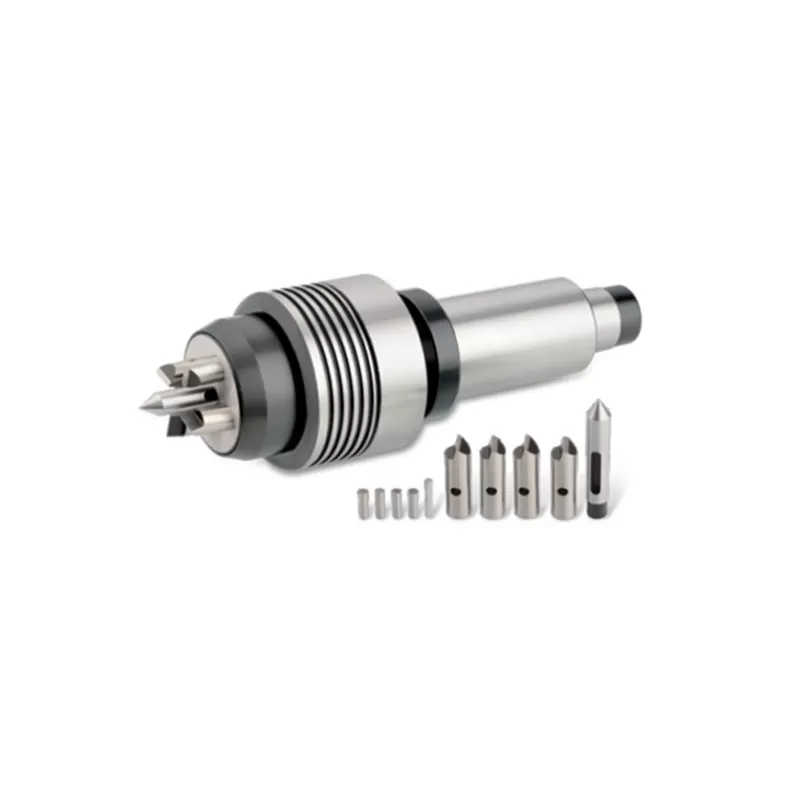

SC-66-A CHANGEABLE SELF COMPENSATING FACE DRIVER
Type: Face driving center,Compensating pins type
Application: CNC lathe and high speed lathe and auto feeder or other machine tool
Working Usage: Without turning the workpiece face and each drive pin can adjust the transmission force,better precision and stability for turning and reversing lathing process
Structure: Adopted the design of mechanical balance structure
Accessories: For SC-66-A group, center pins 09-09 and drive pins 10-10
For SC-66-B group, center pins 09-09 and drive pins 10-13
For SC-66-C group, center pins 09-06 and drive pins 10-17
TIR: Less than 0.005mm

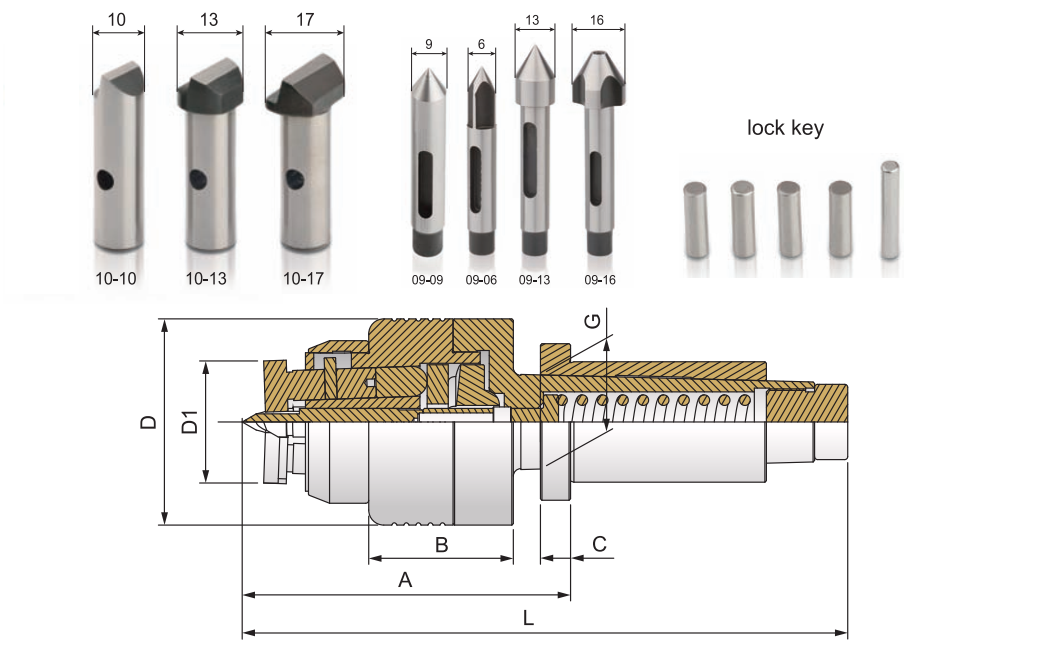

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | G | L |
Working range |
| SC-66-A-3A | 109 | 48 | 8 | 68.5 | 33.5 | 23.825(MT3) | 180 | 17--40mm |
| SC-66-A-3B | 109 | 48 | 8 | 68.5 | 36.8 | 23.825(MT3) | 180 | 15--45mm |
| SC-66-A-3C | 109 | 48 | 8 | 68.5 | 40.5 | 23.825(MT3) | 180 | 10--50mm |
| SC-66-A-4A | 109 | 48 | 10 | 68.5 | 33.5 | 31.267(MT4) | 203 | 17--40mm |
| SC-66-A-4B | 109 | 48 | 10 | 68.5 | 36.8 | 31.267(MT4) | 203 | 15--45mm |
| SC-66-A-4C | 109 | 48 | 10 | 68.5 | 40.5 | 31.267(MT4) | 203 | 10--50mm |
| SC-66-A-5A | 112 | 48 | 10 | 68.5 | 33.5 | 44.399(MT5) | 227 | 17--40mm |
| SC-66-A-5B | 112 | 48 | 10 | 68.5 | 36.8 | 44.399(MT5) | 227 | 15--45mm |
| SC-66-A-5C | 112 | 48 | 10 | 68.5 | 40.5 | 44.399(MT5) | 227 | 10--50mm |
Customized order can be accepted.
Subject to technical changes
Production Catalogue Download:
Manual and Technical instruction for Centers
