| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TSC-9663-TS06-3A,TSC-9663-TS08-3A,TSC-9663-TS10-3A, etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TSC-9663 TUNGSTEN CARBIDE STEEL POINT TWO PHASE TYPE WITH NUT DEAD CENTER | Material: | Alloy Steel /Tungsten Carbide |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.002mm |
| Highlight: | live center tailstock, wood lathe tailstock live center |
||

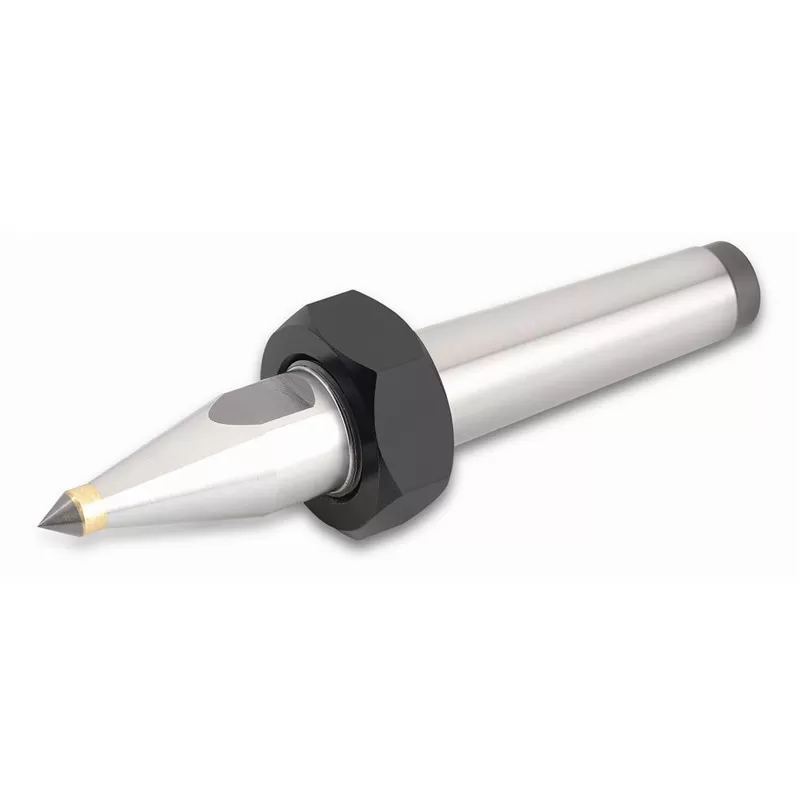

TSC-9663 TUNGSTEN CARBIDE STEEL POINT TWO PHASE TYPE WITH NUT DEAD CENTER
Type: Tungsten carbide series,Dead centers type
Application: CNC lathe and other lathe
Working Usage: Applicable for rotary structure of tailstock, and slender workpiece turning process
Structure: Made of alloy steel and hardened to HRC 57-60, precision ground, adopted the tungsten carbide steel from the USA, which is high wear resistance. the welding depth is 20mm,strong rigidity and better stability.
Advantage: Adopted the tungsten material imported from the US, which is wear resisting, the welding depth of tungsten reach 20mm, strong rigidity, good stability.
Accessories: Y type spanner
TIR: Less than 0.002mm

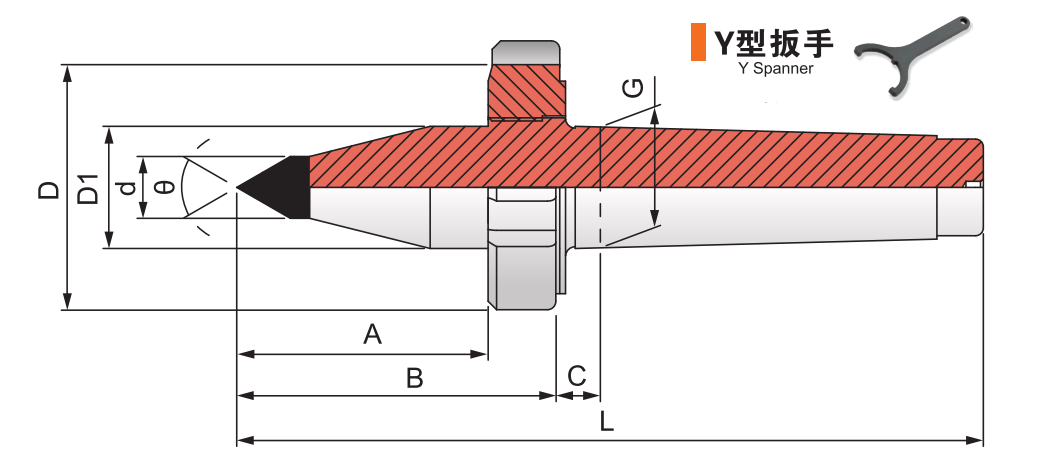

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | d | G | L | Ø |
| TSC-9663-TS06-3A | 60 | 75 | 8 | 53 | 24.1 | 6 | 23.825(MT3) | 162 | 60゜ |
| TSC-9663-TS08-3A | 60 | 75 | 8 | 53 | 24.1 | 8 | 23.825(MT3) | 162 | 60゜ |
| TSC-9663-TS10-3A | 60 | 75 | 8 | 53 | 24.1 | 10 | 23.825(MT3) | 162 | 60゜ |
| TSC-9663-TS16-3A | 60 | 75 | 8 | 53 | 24.1 | 16 | 23.825(MT3) | 162 | 60゜ |
| TSC-9663-TS06-4A | 65 | 85 | 9 | 68 | 31.6 | 6 | 31.267(MT4) | 193 | 60゜ |
| TSC-9663-TS08-4A | 65 | 85 | 9 | 68 | 31.6 | 8 | 31.267(MT4) | 193 | 60゜ |
| TSC-9663-TS10-4A | 65 | 85 | 9 | 68 | 31.6 | 10 | 31.267(MT4) | 193 | 60゜ |
| TSC-9663-TS16-4A | 65 | 85 | 9 | 68 | 31.6 | 16 | 31.267(MT4) | 193 | 60゜ |
Customized order can be accepted.
Subject to technical changes.
