| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TSC-9662-TS-3A,TSC-9662-TS-4A,TSC-9662-TS-5A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TSC-9662 TUNGSTEN CARBIDE STEEL POINT WITH NUT DEAD CENTER | Material: | Alloy Steel /Tungsten Carbide |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.002mm |
| Highlight: | lathe tailstock live center, live center tailstock |
||

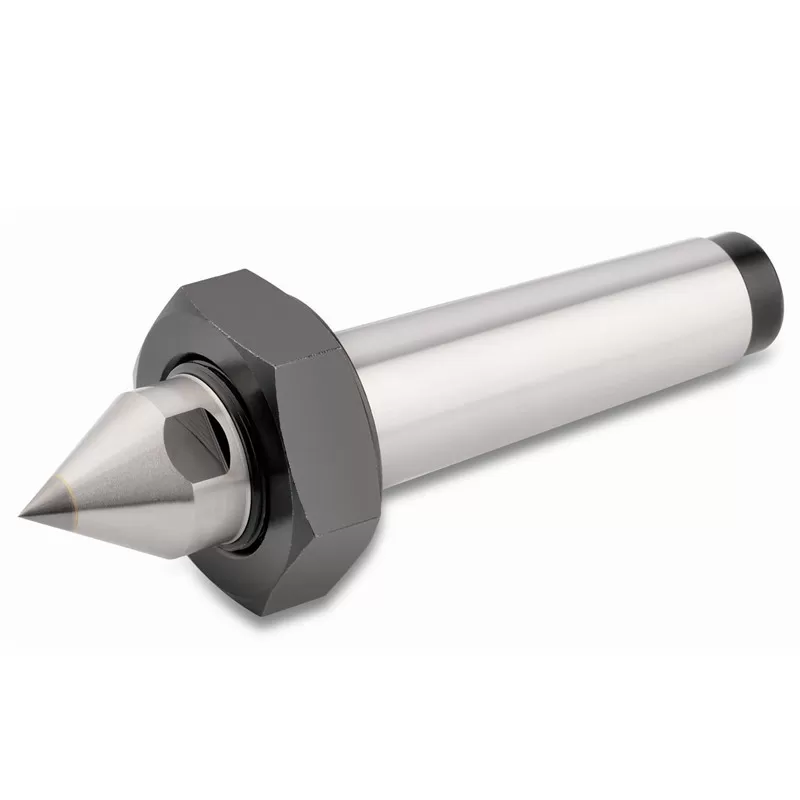

TSC-9662 TUNGSTEN CARBIDE STEEL POINT WITH NUT DEAD CENTER
Type: Tungsten carbide series,Dead centers type
Application: CNC lathe and other lathe.
Working Usage: Applicable for rotary structure of tailstock
Structure: Made of alloy steel and hardened to HRC 57-60, precision ground, adopted the tungsten carbide steel from the USA, which is high wear resistance
Advantage: Adopted the tungsten material imported from the US, which is wear resisting
Accessories: Y type spanner
TIR: Less than 0.002mm

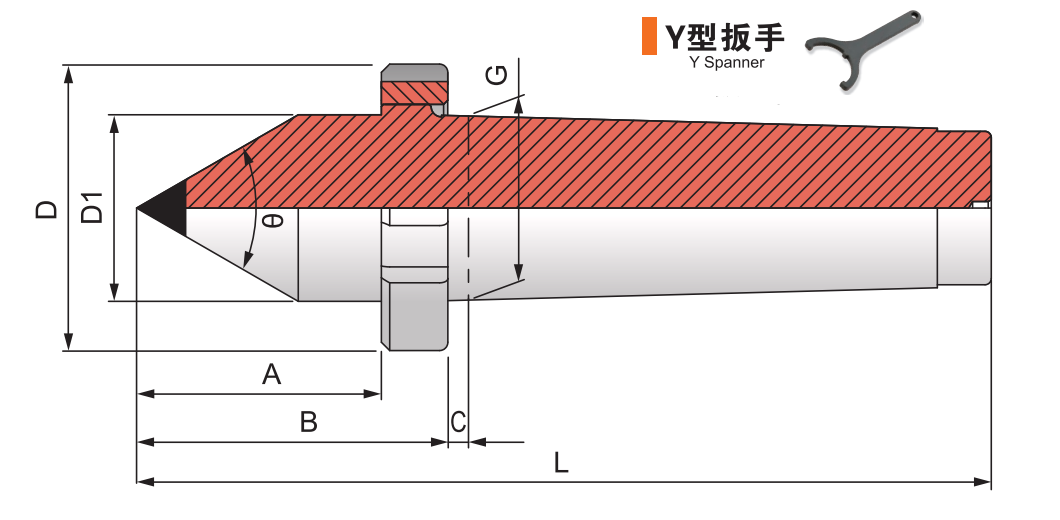

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | G | L | Ø |
| TSC-9662-TS-3A | 36 | 51 | 8 | 53 | 24.1 | 23.825(MT3) | 138 | 60゜ |
| TSC-9662-TS-4A | 42 | 62 | 9 | 68 | 31.6 | 31.267(MT4) | 170 | 60゜ |
| TSC-9662-TS-5A | 59 | 71 | 9 | 88 | 45 | 44.399(MT5) | 206 | 60゜ |
Customized order can be accepted.
Subject to technical changes.
