TSC-9662 LIGHT DUTY WITH NUT DEAD CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: TSC-9662-3A,TSC-9662-4A,TSC-9662-5A,TSC-9662-6A
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: TSC-9662 LIGHT DUTY WITH NUT DEAD CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.002mm
High Light:

live center tailstock

,

wood lathe tailstock live center

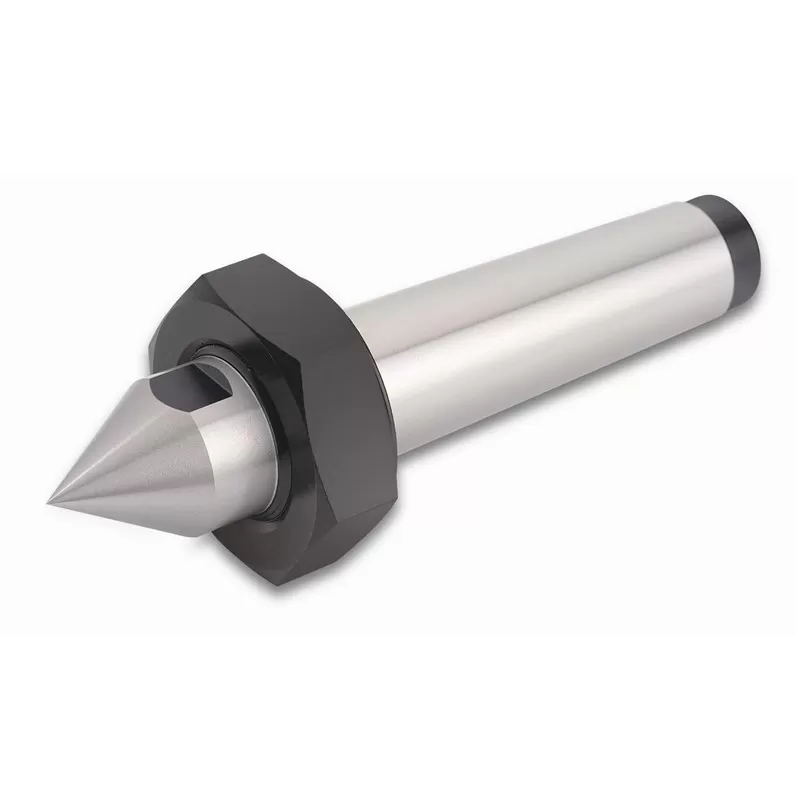

TSC-9662 LIGHT DUTY WITH NUT DEAD CENTER

Type: Live centers series
Duty: Light

Application: CNC lathe and other lathe

Working Usage: Applicable for rotary structure of tailstock

Structure: Made of alloy steel and hardened to HRC 57-60, precision ground

Accessories: Y type spanner

TIR: Less than 0.002mm

TSC-9662 LIGHT DUTY WITH NUT DEAD CENTER 0

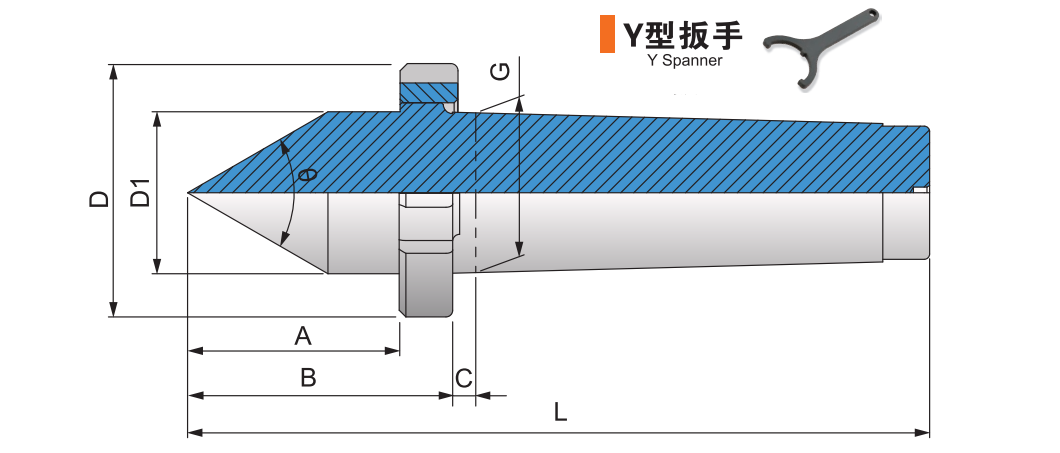

Specification UNIT:mm



Model/Spec A B C D D1 G L Ø
TSC-9662-3A 40 40 8 53 24.1 23.825(MT3) 138 60゜
TSC-9662-4A 42 42 9 68 31.6 31.267(MT4) 170 60゜
TSC-9662-5A 59 59 9 88 45 44.399(MT5) 206 60゜
TSC-9662-6A 70 70 10 108 65 63.348(MT6) 290 60゜



Customized order can be accepted.
Subject to technical changes.



Production Catalogue Download:

Accessories for Centers

Manual and Technical instruction for Centers
