| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SC-93-L-2,SC-93-L-3,SC-93-L-4,SC-93-L-5 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC-93 LIGHT DUTY LONG NOSE LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.002mm |
| Highlight: | lathe tailstock live center, live center tailstock |
||

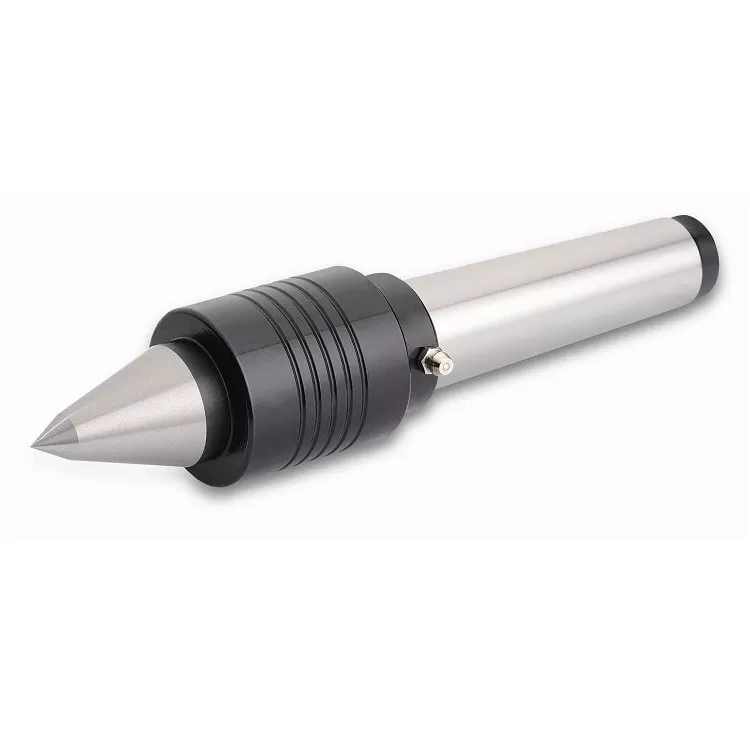

SC-93 LIGHT DUTY LONG NOSE LIVE CENTER
Type: Live centers series
Duty: Light
Application: Center lathe
Working Usage: Applicable for ordinary turning process, slender workpiece turning process
Structure: Made of alloy steel and hardened to HRC 57-60, ground on ID and OD
TIR Less than 0.002mm

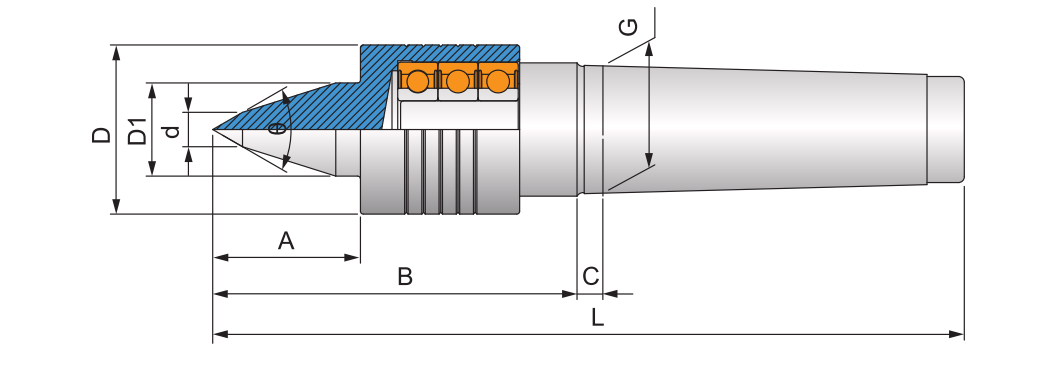

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | d | G | L | Ø | Max. RPM | Max. axial thrust force |
| SC-93-L-2 | 51 | 117 | 6 | 48 | 32 | 12 | 17.780(MT2) | 186 | 60゜ | 3,500rpm | 160kg |
| SC-93-L-3 | 51 | 117 | 8 | 48 | 32 | 12 | 23.825(MT3) | 204 | 60゜ | 3,000rpm | 250kg |
| SC-93-L-4 | 51 | 117 | 9 | 48 | 32 | 12 | 31.267(MT4) | 225 | 60゜ | 2,600rpm | 400kg |
| SC-93-L-5 | 51 | 122 | 9 | 59 | 32 | 12 | 44.399(MT5) | 257 | 60゜ | 2,200rpm | 800kg |
REMARKS
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
