SC-92 LIGHT DUTY LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: SC-92-L-2,SC-92-L-3,SC-92-L-4,SC-92-L-5
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:SC-92 LIGHT DUTY LIVE CENTER Material: Alloy Steel
Function:High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Usage: Refer To The Specification Service: Less Than 0.002mm
Highlight:

live center tailstock, wood lathe tailstock live center

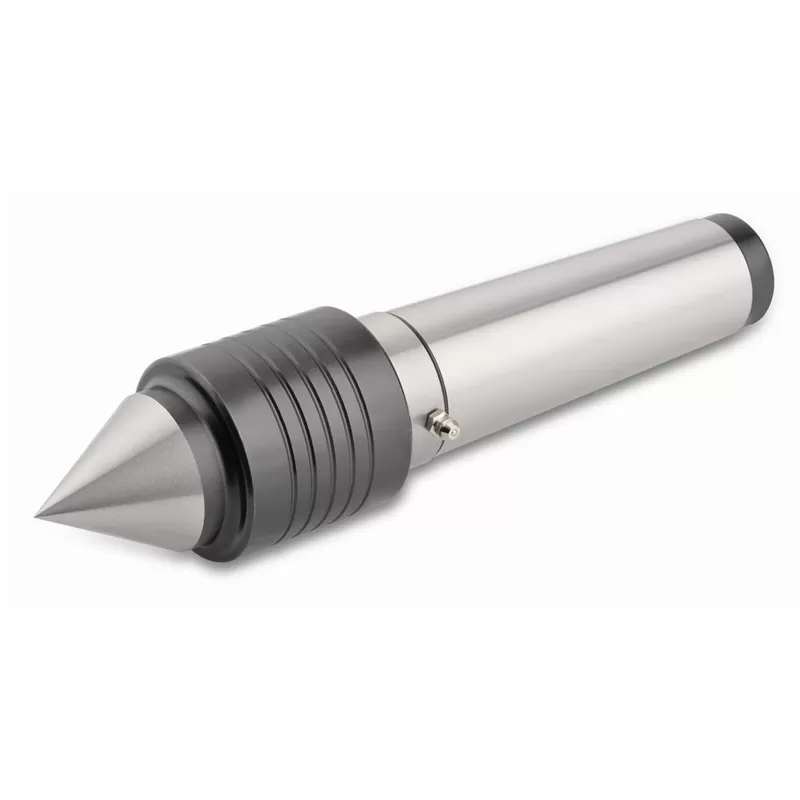

SC-92 LIGHT DUTY LIVE CENTER

Type: Live centers series
Duty: Light

Application: Center lathe

Working Usage: Applicable for ordinary workpiece turning process

Structure: Made of alloy steel and hardened to HRC 57-60,ground on ID and OD

TIR: Less than 0.002mm

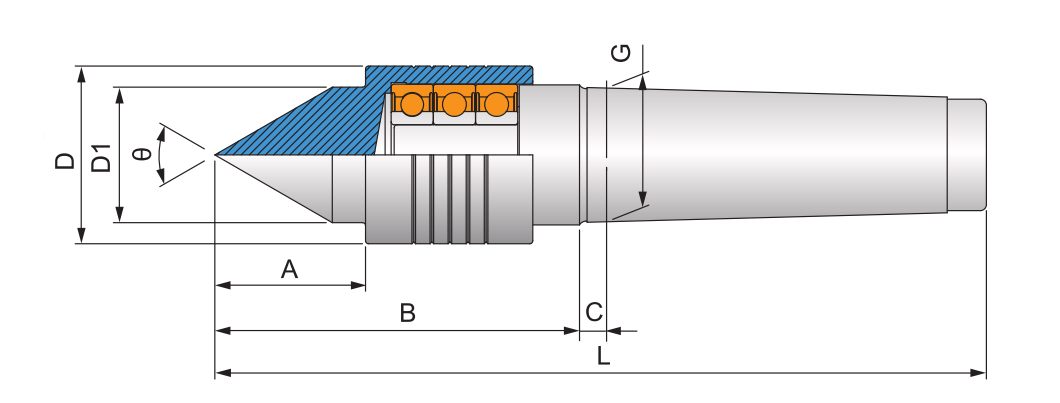

d3f8219ed4f5db358060e2f034c1b5ae_20190821092758_69873.pngSpecification UNIT:mm

Model/SpecABCDD1GLØMax. RPM

Max. axial

thrust force

SC-92-L-2401056483517.780(MT2)17460゜3,500rpm160kg
SC-92-L-3401058483523.825(MT3)19260゜3,000rpm250kg
SC-92-L-4401059483531.267(MT4)21360゜2,600rpm400kg
SC-92-L-5501219594544.399(MT5)25660゜2,200rpm800kg

REMARKS

1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2,if "A" is behind the center model name,it denotes a draw-off nut attached.

3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
