JK-562 HEAVY DUTY STRONG LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: JK-562-4,JK-562-5,JK-562-6
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: JK-562 HEAVY DUTY STRONG LIVE CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.002mm
High Light:

live center tailstock

,

wood lathe tailstock live center

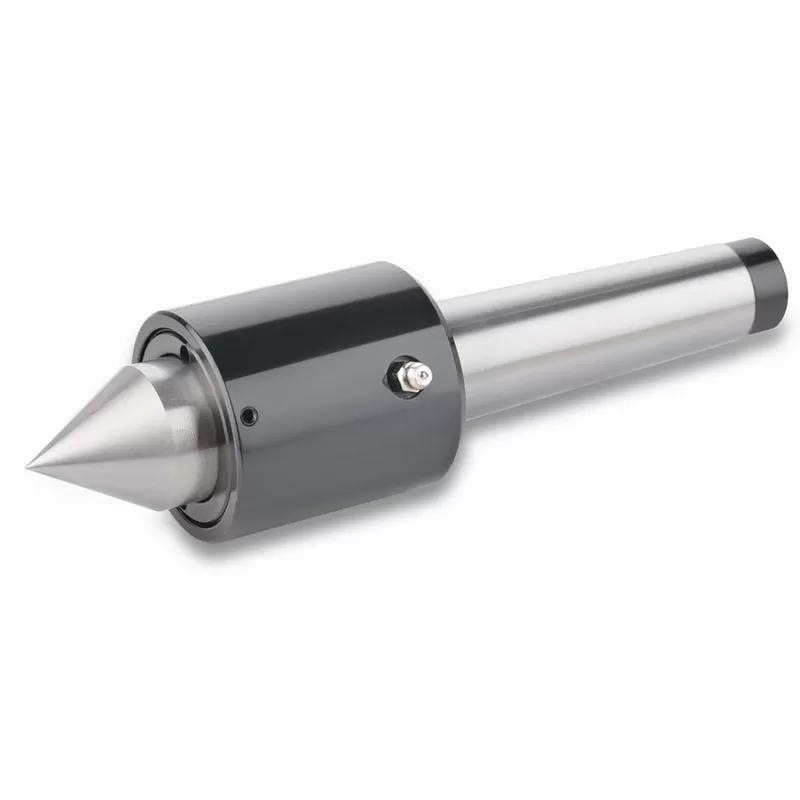

JK-562 HEAVY DUTY STRONG LIVE CENTER

Type: Live centers series
Duty: Heavy

Application CNC lathe, high speed lathe, cylindrical grinding machine

Working Usage: Applicable for ordinary length workpiece stong turning process

Structure: Combination of thrust bearing and needle bearing at front and rear place

TIR: Less than 0.002mm

JK-562 HEAVY DUTY STRONG LIVE CENTER 0

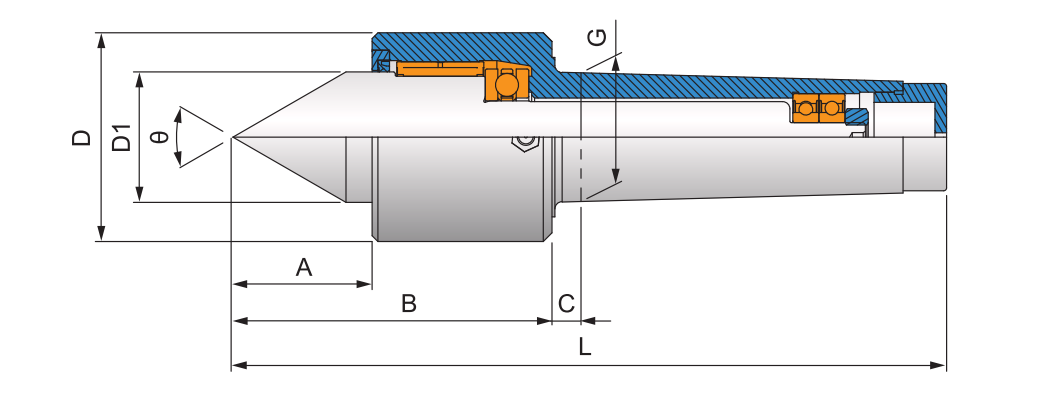

Specification UNIT:mm

Model/Spec A B C D D1 G L Ø Max. RPM Max. radial load Max. axial thrust force
JK-562-4 42 99 9 57 35 31.267(MT4) 207 60゜ 4,500rpm 1,500kg 2,250kg
JK-562-5 51 119 9 72 45 44.399(MT5) 254 60゜ 4,000rpm 2,300kg 2,760kg
JK-562-6 64 142 10 93 60 63.348(MT6) 332 60゜ 3,000rpm 4,200kg 4,850kg

REMARKS

1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.

3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
