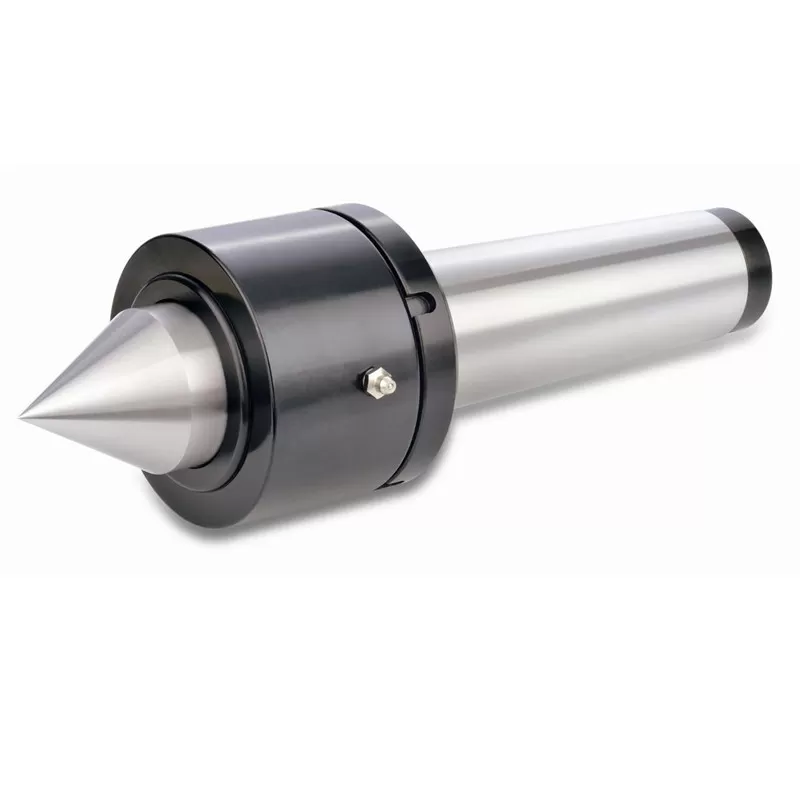

SC-60 HEAVY DUTY HIGH SPEED STRONG LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: SC-60-H-4,SC-60-H-5,SC-60-H-6A
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: SC-60 HEAVY DUTY HIGH SPEED STRONG LIVE CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.002mm
High Light:

lathe tailstock live center

,

wood lathe tailstock live center

SC-60 HEAVY DUTY HIGH SPEED STRONG LIVE CENTER

Duty: Heavy

Application: CNC heavy duty lathe, heavy duty high speed lathe

Working Usage: Applicable for the long workpiece heavy duty turning process

Structure: Combination of angular contact precise high speed ball bearing and needle bearing, with the design of three supporting points

Accessories: For SC-60-H-6A: special Y type spanner

TIR: Less than 0.002mm

SC-60 HEAVY DUTY HIGH SPEED STRONG LIVE CENTER 0

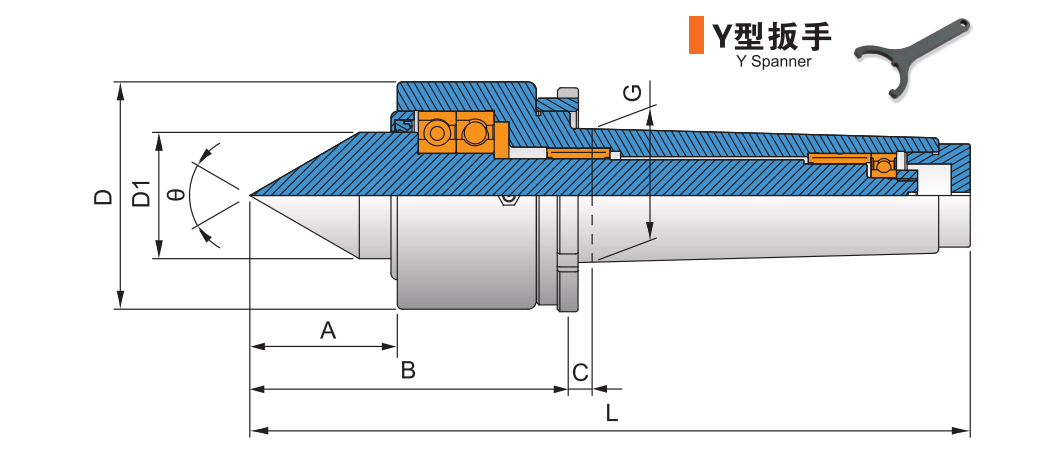

Specification UNIT:mm

Model/Spec A B C D D1 G L Ø Max. RPM Max. radial load Max. axial thrust force
SC-60-H-4 54 97 9 78 34.8 31.267(MT4) 205 60゜ 5,000rpm 1,900kg 1,600kg
SC-60-H-5 62 109 9 83 44.8 44.399(MT5) 244 60゜ 5,000rpm 3,000kg 2,200kg
SC-60-H-6A 70 152 10 108 59.9 63.348(MT6) 342 60゜ 3,000rpm 5,000kg 3,500kg

REMARKS

1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.

3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
