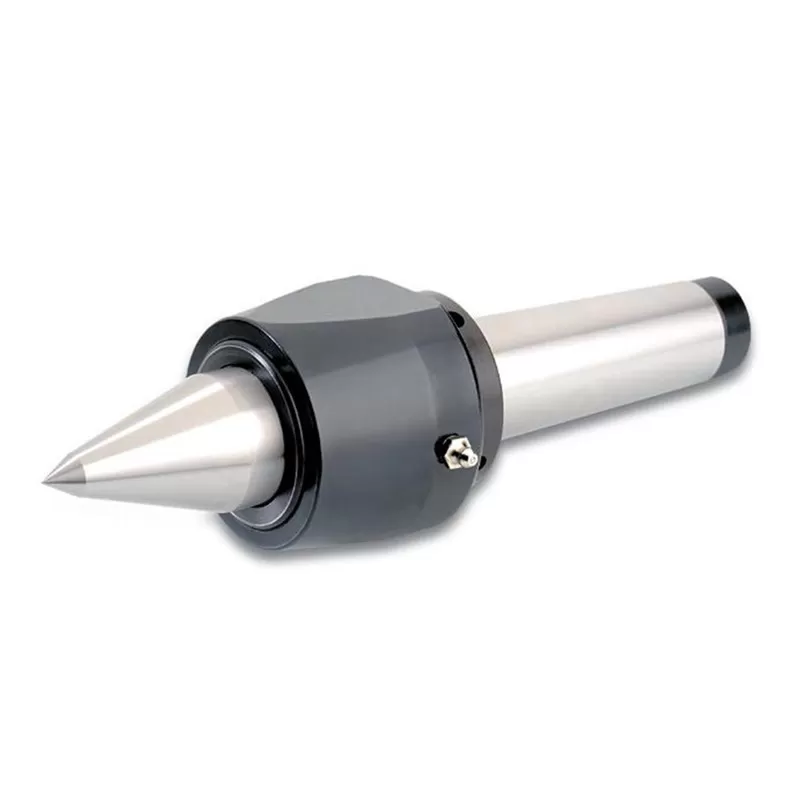

TSC-263 HEAVY DUTY LONG NOSE LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: TSC-263-3A,TSC-263-4A,TSC-263-5A,
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: TSC-263 HEAVY DUTY LONG NOSE LIVE CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.002mm
High Light:

live center tailstock

,

wood lathe tailstock live center

TSC-263 HEAVY DUTY LONG NOSE LIVE CENTER

Type: Live centers series
Duty: Heavy

Application CNC heavy duty lathe, heavy duty high speed lathe

Working Usage Applicable for the long workpiece and heavy duty turning process

Structure Combination of double row precise ball bearing and thrust bearing and needle bearing, with the design of three supporting points.

Accessories Y type spanner

TIR Less than 0.002mm

TSC-263 HEAVY DUTY LONG NOSE LIVE CENTER 0
Specification UNIT:mm

Model/Spec A B C D D1 d G L Ø Max. RPM Max. radial load Max. axial thrust force
TSC-263-3A 75 147 8 58 34.8 13 23.825(MT3) 234 60゜ 6,000rpm 1,450kg 1,800kg
TSC-263-4A 75 147 8 65 34.8 13 31.267(MT4) 255 60゜ 6,000rpm 2,250kg 2,700kg
TSC-263-5A 75 153 9 75 44.8 15 44.399(MT5) 288 60゜ 6,000rpm 3,620kg 3,000kg

REMARKS

1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.

3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
