TSC-762 MEDIUM DUTY HIGH PERFORMANCE LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: TSC-762-3,TSC-762-4,TSC-762-5
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: TSC-762 MEDIUM DUTY HIGH PERFORMANCE LIVE CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.002mm
High Light:

lathe tailstock live center

,

live center tailstock

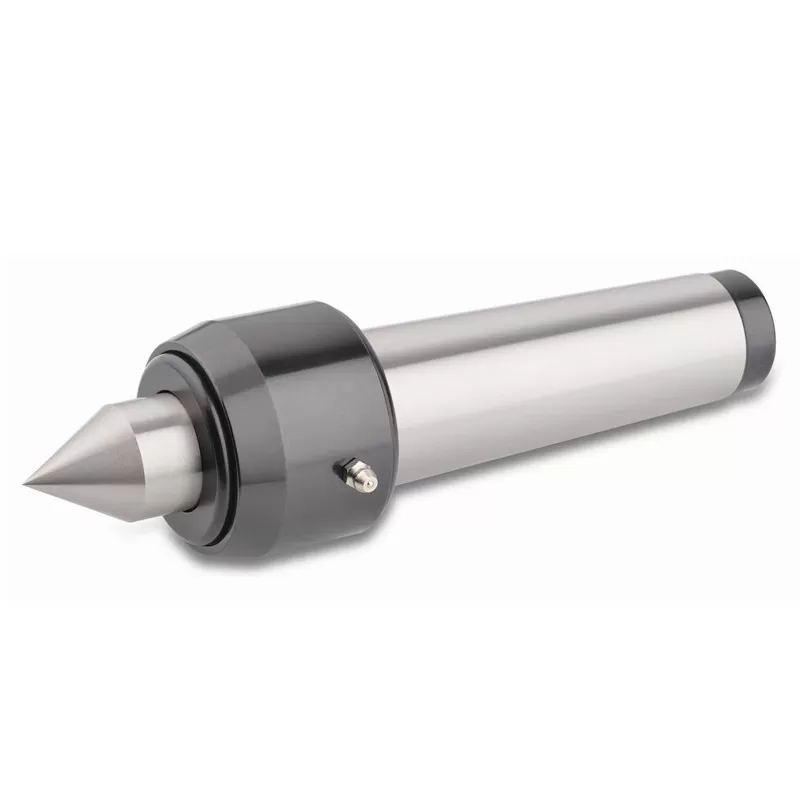

TSC-762 MEDIUM DUTY HIGH PERFORMANCE LIVE CENTER
Duty: Medium
Application: CNC lathe, high speed lathe and other lathe
Working Usage: Applicable for the length less than 300mm ordinary turning process
Structure: Combination of thrust bearing and design of front and rear double supporting point
TIR: Less than 0.002mm



TSC-762 MEDIUM DUTY HIGH PERFORMANCE LIVE CENTER 0

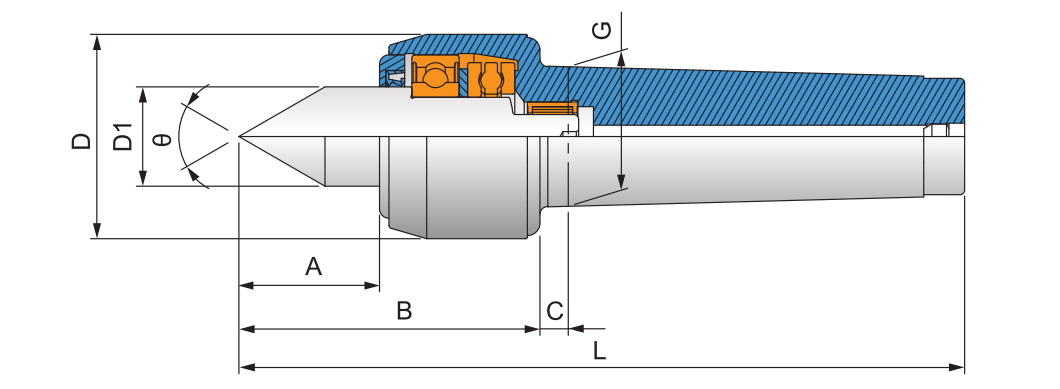

Specification UNIT:mm

Model/Spec A B C D D1 G L Ø Max. RPM Max. radial load Max. axial thrust force
TSC-762-3 45 96 8 58 31 23.825(MT3) 183 60゜ 4,000rpm 900kg 2,200kg
TSC-762-4 45 96 9 65 31 31.267(MT4) 204 60゜ 4,000rpm 1,100kg 2,500kg
TSC-762-5 45 96 9 65 31 44.399(MT5) 231 60゜ 4,000rpm 1,200kg 2,500kg

REMARKS
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.

3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
