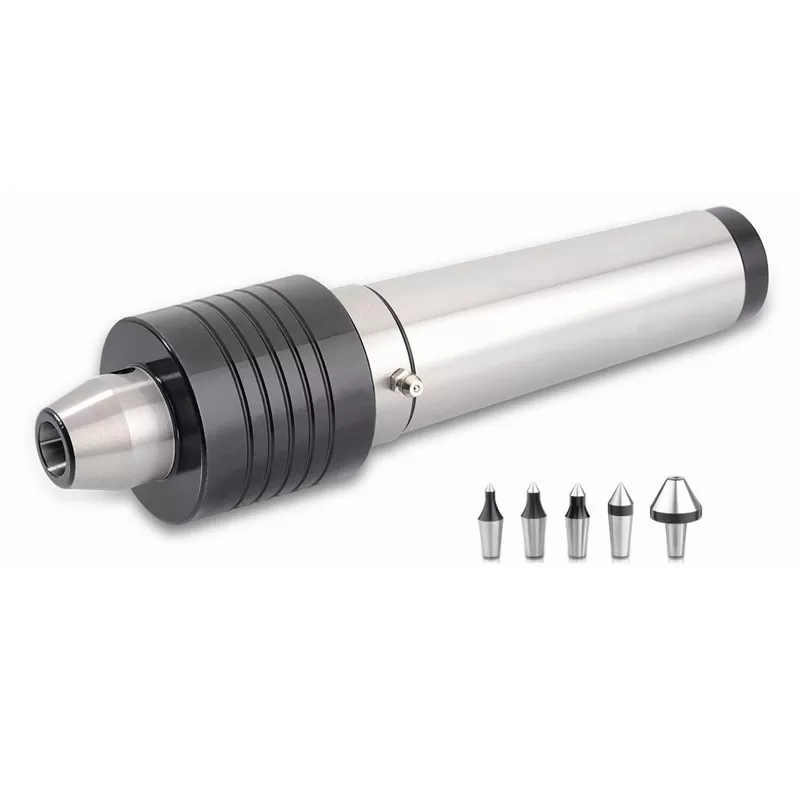

SC-91 INTERCHANGEABLE LIGHT DUTY LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number:SC-91-L-2,SC-91-L-3,SC-91-L-4,SC-91-L-5
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:SC-91 INTERCHANGEABLE LIGHT DUTY LIVE CENTER Material: Alloy Steel
Function: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Usage: Refer To The Specification Service: Less Than 0.005mm
Highlight:

lathe tailstock live center, live center tailstock

SC-91 INTERCHANGEABLE LIGHT DUTY LIVE CENTER

Type: Interchangeble live center
Duty: Light

Application Ordinary lathe (without waterproof function, can't be used to CNC lathe)

Working Usage Applicable for ordinary turning process.

Structure Made of alloy steel and hardened to HRC 57-60, ground on ID and OD.

Accessories 61 type Tips and 61 type pin punch.

TIR Less than 0.005mm

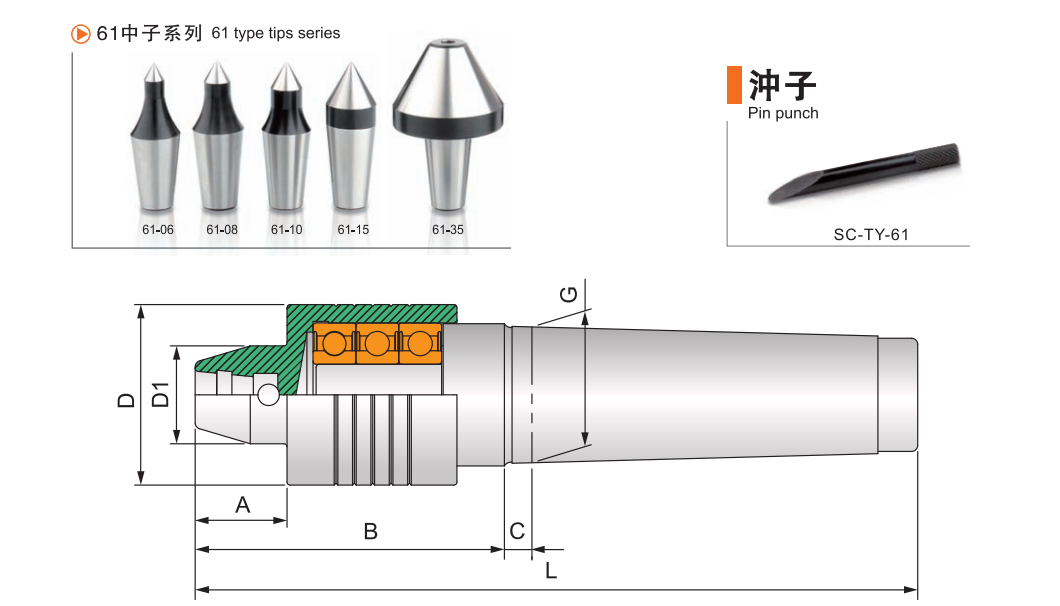

0ea4a91dc40dfc1aceea8f3fa41f49c1_20190821092822_43264.pngSpecification UNIT:mm

Model/SpecABCDD1GLMax.RPMMax. radial load
SC-91-L-230956483217.780(MT2)1643,500rpm160kg
SC-91-L-330958483223.825(MT3)1823,000rpm250kg
SC-91-L-430959483231.267(MT4)2032,600rpm400kg
SC-91-L-5301019593244.399(MT5)2362,200rpm800kg

REMARKS

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks

3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
