SC-48 INTERCHANGEABLE LIGHT DUTY LIVE CENTER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: SC-48-M-2,SC-48-M-3,SC-48-M-4
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: SC-48 INTERCHANGEABLE LIGHT DUTY LIVE CENTER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.005mm
High Light:

lathe tailstock live center

,

wood lathe tailstock live center

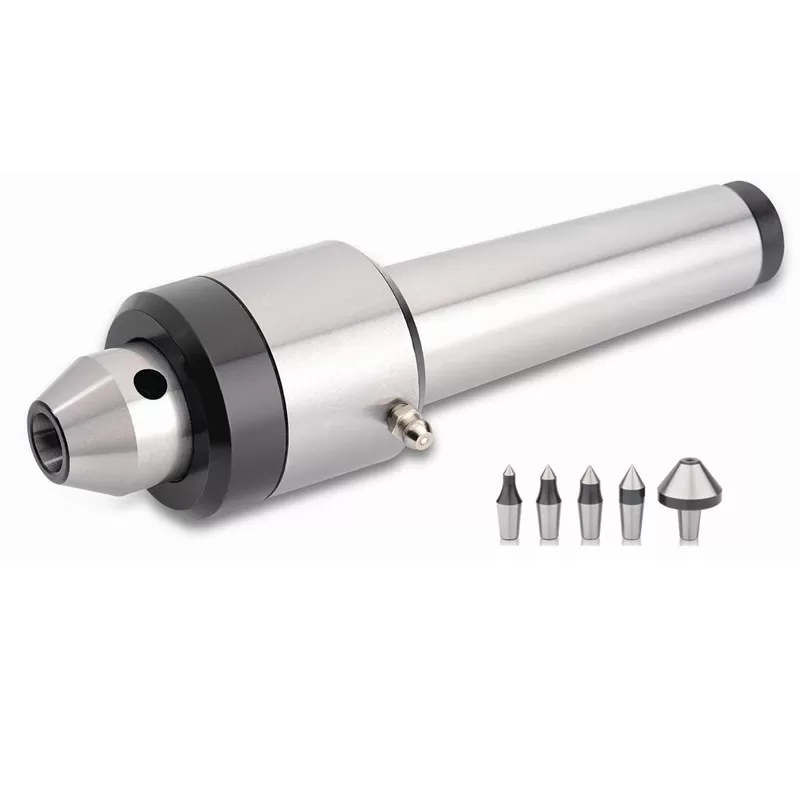

SC-48 INTERCHANGEABLE LIGHT DUTY LIVE CENTER

Type: Interchangeble live center
Duty: Light

Application CNC lathe and high speed lathe or center lathe.

Working Usage Applicable for ordinary small diameter high speed turning process.

Structure Combination of angular contact ball bearing and deep groove ball bearing.

Accessories 48 type Tips and 61 type pin punch.

TIR Less than 0.005mm

SC-48 INTERCHANGEABLE LIGHT DUTY LIVE CENTER 0

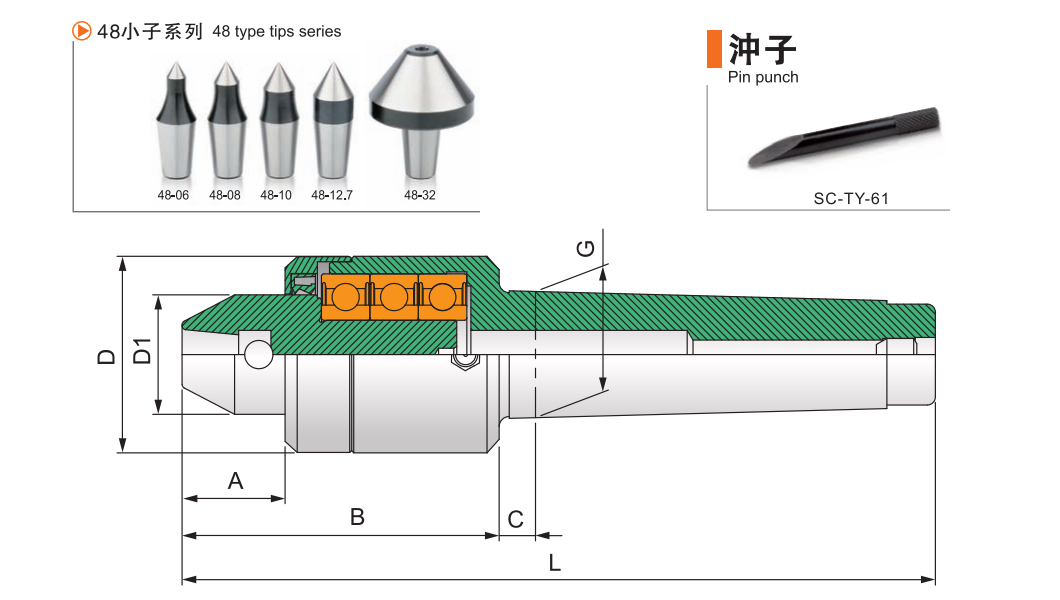

Specification UNIT:mm

Model/Spec A B C D D1 G L Max.RPM Max. radial load
SC-48-M-2 25 78 6 52 28.5 17.780(MT2) 147 2,000rpm 300kg
SC-48-M-3 25 79 8 52 28.5 23.825(MT3) 166 2,000rpm 400kg
SC-48-M-4 25 78 9 52 28.5 31.267(MT4) 186 2,000rpm 500kg

Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
Remarks

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
