|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Good and firm package is suitable for sea and air shipping|
|Delivery Time:||3 work days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||1000 sets/M|
|Product Name:||TSC-748 INTERCHANGEABLE MEDIUM DUTY LIVE CENTER||Material:||Alloy Steel|
|Usage:||High Speed And High Precision Lathe Turning||Feature:||High Quality/High Precision|
|Size:||Refer To The Specification||TIR:||Less Than 0.005mm|
live center tailstock,
wood lathe tailstock live center

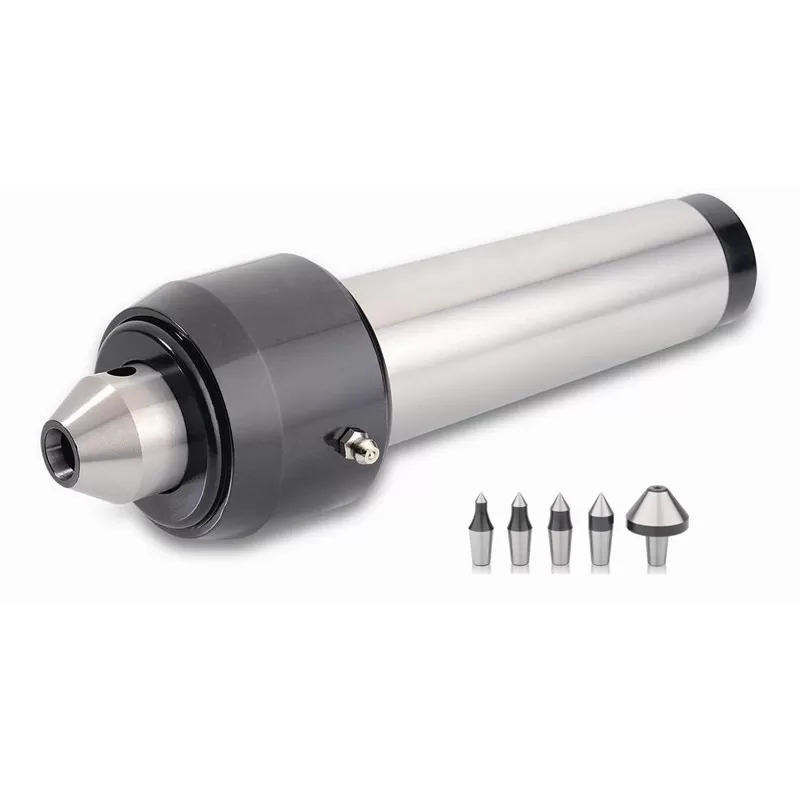

Type: TSC-748 Interchangeble live center
Application CNC lathe and high speed lathe or other lathe machine.
Working Usage Applicable for small dia. and the length less than 300mm ordinary turning process.
Structure Combination of thrust bearing and with the design of double supporting point.

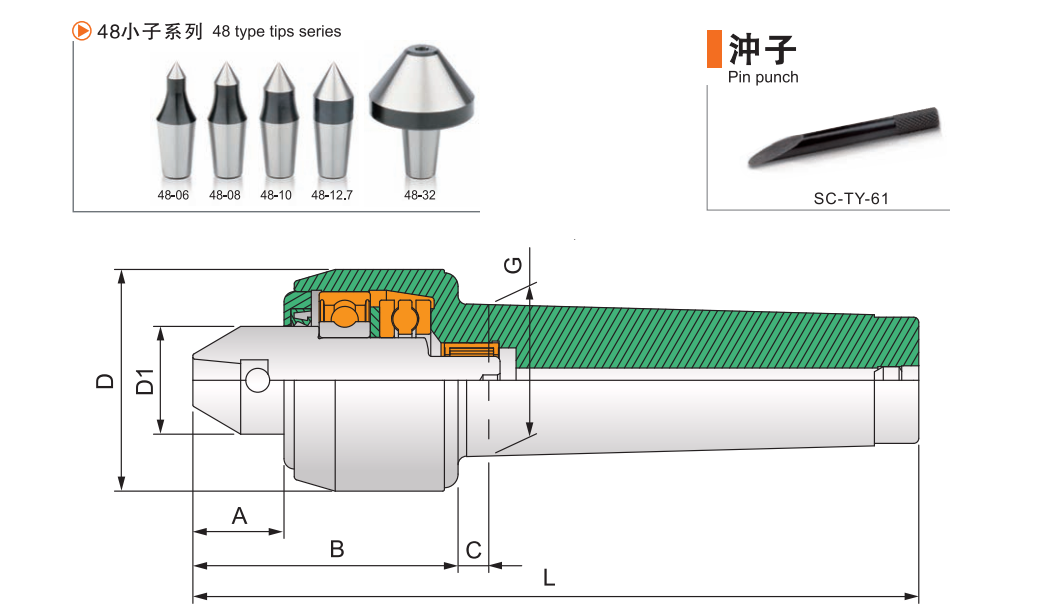

Accessories 48 type Tips and 61 type pin punch.
TIR Less than 0.005mm
|Model/Spec||A||B||C||D||D1||G||L||Max.RPM||Max. radial load||Max. axial thrustforce|
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2, if "A" is behind the center model name,it denotes a draw-off nut attached.
3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
