AIR-HYDRAULIC POWER UNIT

Basic Information
Place of Origin:CHINA
Brand Name: NTH
Model Number:--
Minimum Order Quantity: 1 SET
Price:Negotiation
Packaging Details: Good and firm package is suitable for the sea and air shipping
Delivery Time:3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:AIR-HYDRAULIC POWER UNIT Material: Provide Mechanical Power
Function:Compacted/Stable/Environmental/Economical Feature: Refer To The Specification
Usage: OEM/ODM Is Acceptable Service: 1:19
Highlight:

electric hydraulic power pack, electric over hydraulic power unit

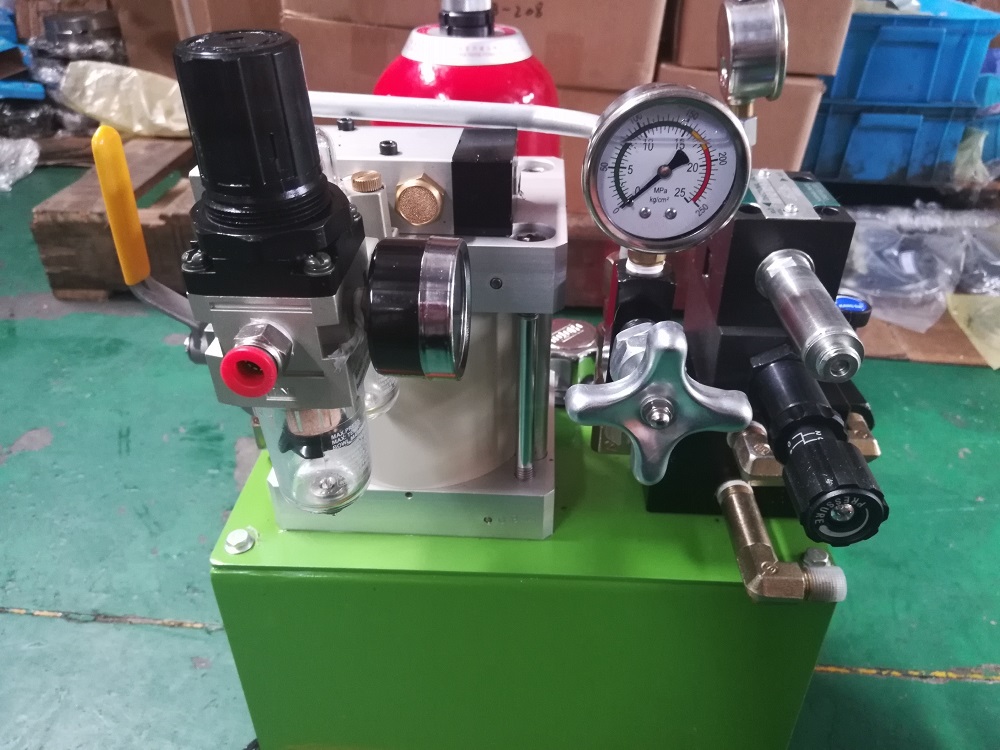

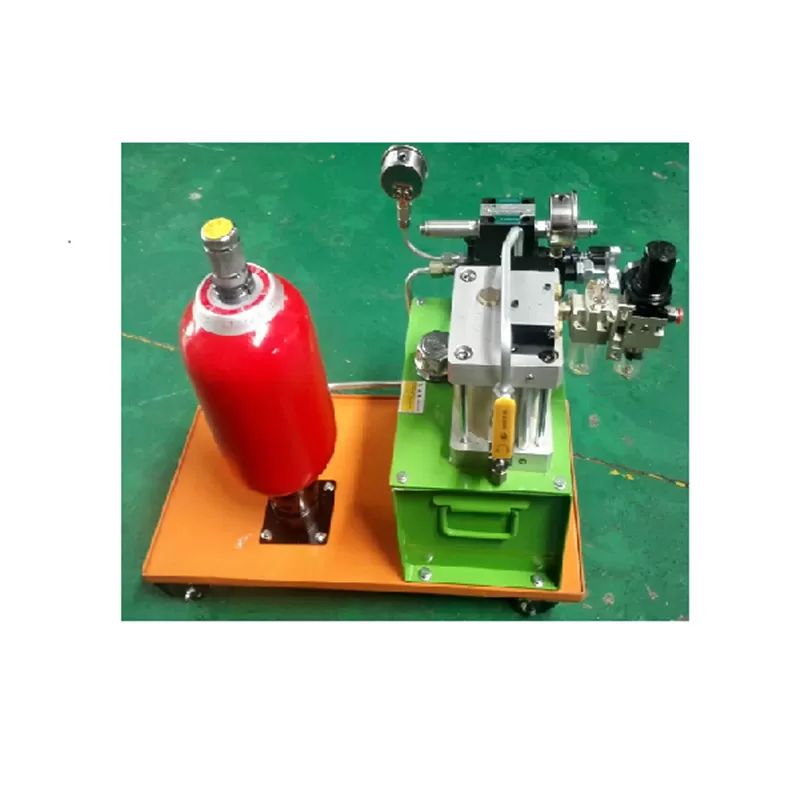

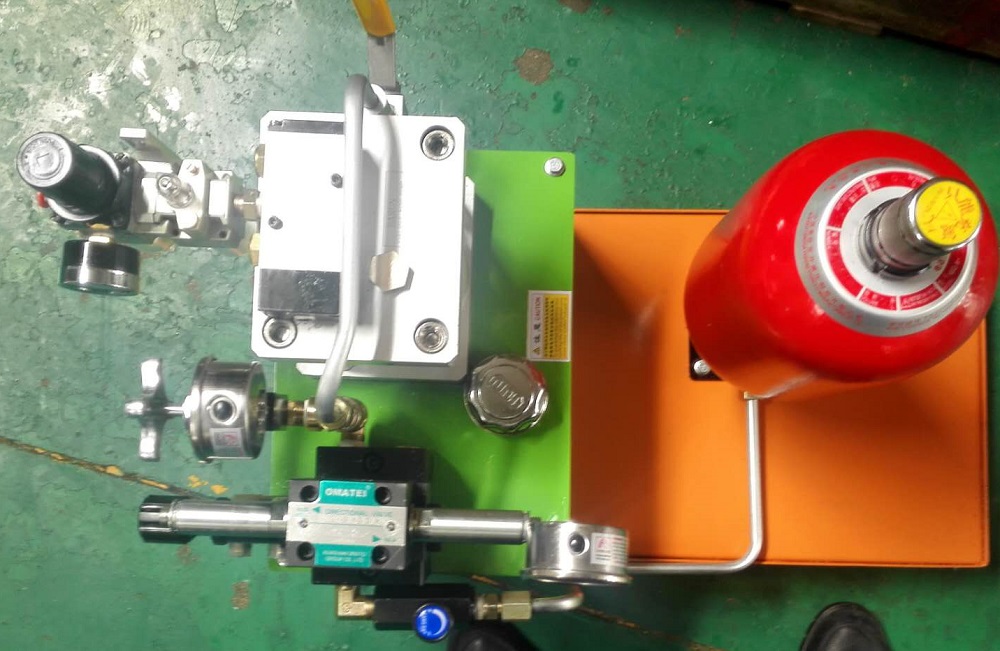

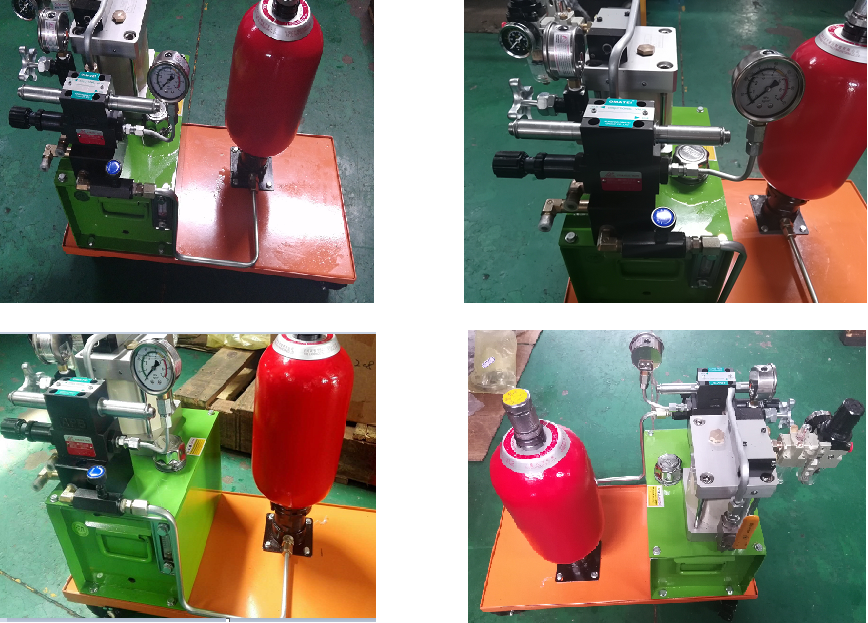

AIR-HYDRAULIC POWER UNIT

Pneumatic and hydraulic power unit pack Description:

This air-oil power unit pack power source is compacted air, no need electricity, so it’s environmental and energy saving,

its structure is integrated and working performance is stable.


Technical data

1) Tank Volume:15L

2) Boost bump:LH25-18F19014

3) Air working pressure:0—0.6MPa

4) Oil working pressure:11MPa

5) Air-Oil ratio:1/19

6) Unit flow:2.5L/min

7) Solenoid:3C2-DC24V

8) Working medium temperature:10-60℃
